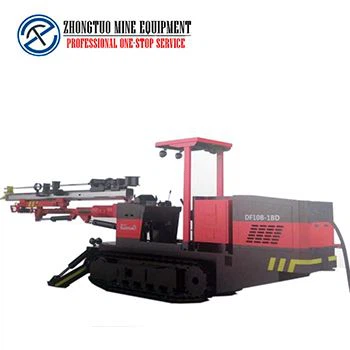

Description of Hydraulic crawler drill
it is a compact drill ideal for drilling in quarries, anchor drilling, and grout drilling. Its compact design makes it the best choice for trenching and consolidation jobs. It can handle toe-hole drilling at steep angles due to an offset boom head and a simple re-pinning concept.
Main technical parameters of DF10B-1BD
|
Body |
|
|
Overall size(l*b*h)mm |
7350x990x2250mm |
|
Hole diameter mm |
Φ43-Φ76 |
|
Hole depth mm |
2700mm(Standard) |
|
2100mm(Option 1) |
|
|
Drilling hole speed m/min |
0.8-2m/min |
|
Section(bxh)m |
2x2~3.5x3.5 |
|
Rock drill model |
HYD200 Positive shank |
|
Rock drill impact frequency KW |
7.5KW |
|
Service voltage 380VAC |
50HZ |
|
Total power KW |
32.6KW |
|
Total weight KG |
6500KG |
|
Running chassis |
|
|
Running speed km/h |
0-1.8km/h |
|
Gradeability(Smooth-riding surface) |
24° |
|
Min. turning radius mm(In situ) |
Inner side 3.5m |
|
Outside 5.2m |
|
|
Classis structure |
Rigidity whole body |
|
Running form |
Crawler track |
|
Ground clearance mm |
140mm |
