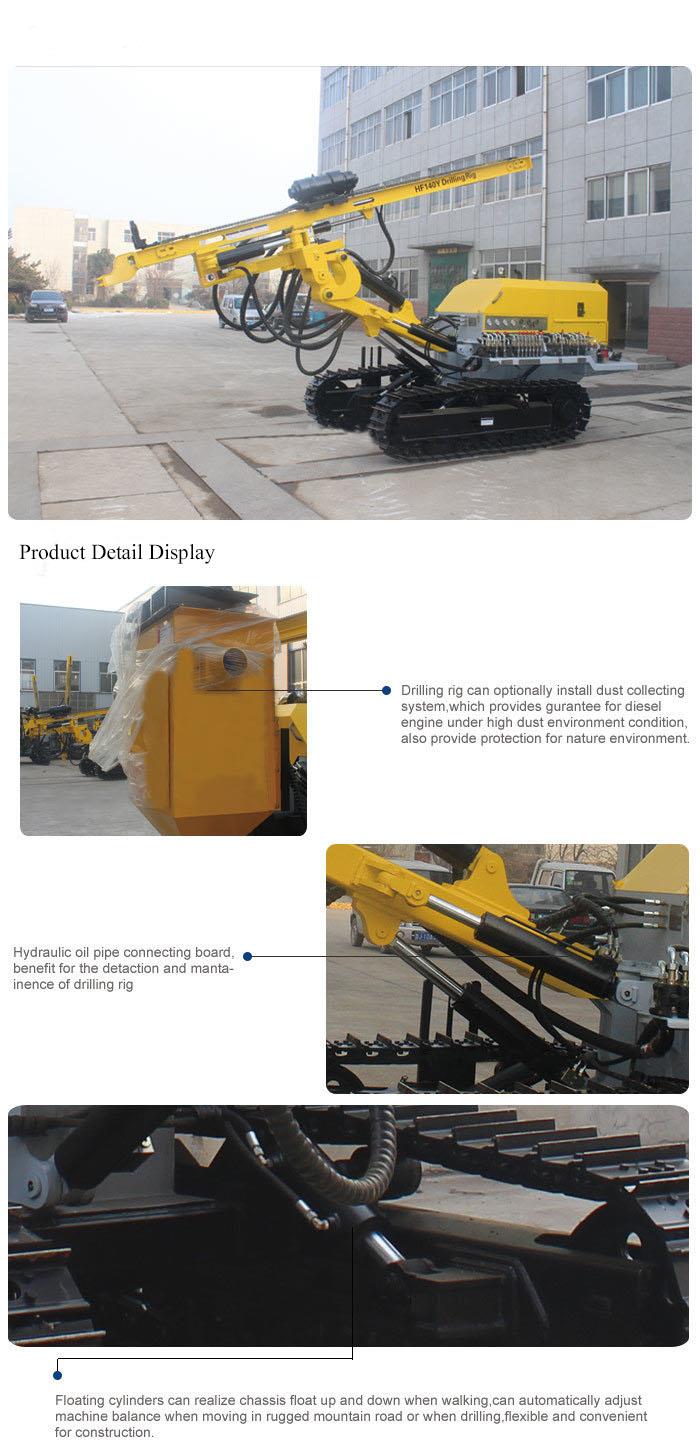

❶Diesel engine protection device
The natural air suction system consists of a desert air filter, secondary air filter, and oil filter, which enhances the adaptability of the drill car to harsh environments and prolongs the service life of the diesel engine.
When the drilling rig is rock drilling, the air compressor is used to clean the air source, and the natural suction air path of the diesel engine is disconnected.
One-way throttle valve can adjust and stabilize diesel engine intake
An air dryer can effectively remove water from the air compressor air source.
❷Powerful powerhead
The rotary reducer adopts a planetary gear reducer and has advanced foreign technology.
The swing cylinder motor has stable rotation, low speed, and large torque.
❸Reliable supporting power
Supporting the YC2108 Chaiqu machine to power the drilling rig
Water tank and hydraulic radiator ensure safe and reliable operation of diesel and drilling rig hydraulic system
The two single gear pumps are respectively driven by the transfer case to advance and rotate the drill
The system provides power and the hydraulic
❹Centralized control structure
The drilling rig has an advanced hydraulic system and a pneumatic system, all of which are centrally controlled, simple and convenient;
The hydraulic valve can realize various actions of the drill arm to ensure stable and efficient rock drilling.
The specially designed one-way throttle valve in the hydraulic system can realize any adjustment of the swing speed, which increases the adaptability of the drill car to various rock layers and improves the work efficiency.
❺Reliable four-wheeled belt
Integral track shoes are easy to install and reliable
The sprocket wheel, the tension spring, and the tightening cylinder ensure the proper tension of the track.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
Hot Tags: diesel-hydraulic crawler rock drilling machine, manufacturers, suppliers, factory, wholesale, buy, cheap, low price
