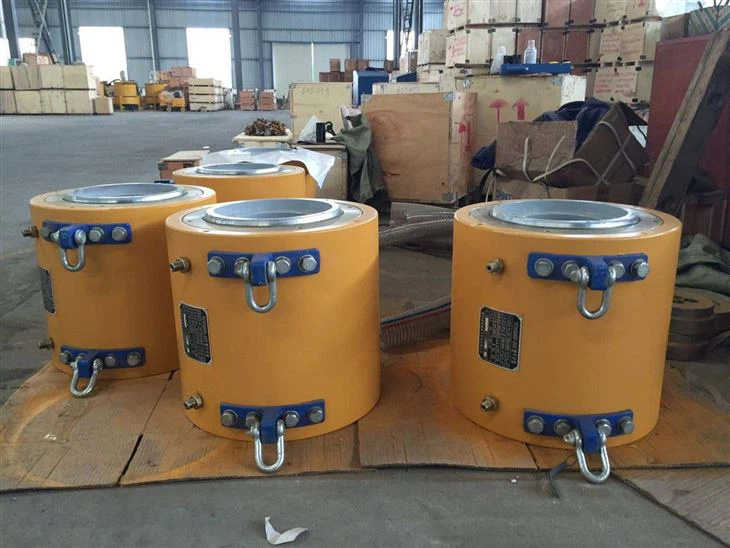

China Hydraulic Cylinder Jack Manufacturer for Bridge Replacement Rubber Production is used in heavy duty lifting application.
In the bridge erection project, an electric punp station can be 4 to 32 (or more) synchr onous jack toprovide power, synchr onous jacking to achieve the bridge support pad to install or replace.
Simultaneous jacking enables bridge support pads to be installed or replaced.
Technical data of China Hydraulic Cylinder Jack Manufacturer for Bridge Replacement Rubber Production
|
Model |
Tonnage (Tons) |
Stroke (mm) |
Body height (mm） |
Stretch height (mm) |
Cylinder outside Diameter (mm) |
Weight (Kg) |
Maximum working pressure (Mpa(bar)) |
|
DS-50*4 |
5 |
6.35 |
40 |
46.35 |
64×52 |
1.0 |
40(400) |
|
DS-100*4 |
10 |
11.2 |
48 |
59.2 |
83×66 |
1.4 |
63(630) |
|
DS-200*4 |
20 |
11.2 |
56 |
67.2 |
100×84 |
3.1 |
63(630) |
|
DS-300*4 |
30 |
12.7 |
66 |
78.7 |
128×105 |
4.5 |
63(630) |
|
DS-500*4 |
50 |
16 |
75 |
91 |
145×128 |
6.8 |
63(630) |
|
DS-750*4 |
75 |
16 |
86 |
102 |
188×158 |
11.4 |
63(630) |
|
DS-1000*4 |
100 |
16 |
96 |
112 |
208×182 |
14.5 |
63(630) |
|
DS-1500*4 |
150 |
16 |
106 |
122 |
250×220 |
26.3 |
63(630) |
Compact design - for use where space is limited.
Locking collar designed to support lifted load for extended periods of time with hydraulic pressure released.
Special coating of China Hydraulic Cylinder Jack Manufacturer for Bridge Replacement Rubber Production improves corrosion and abrasion resistance.
