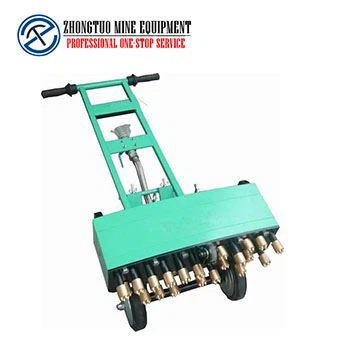

Name: Concrete Floor Scabbler|Hand Driven Pneumatic Chisel Used for Concrete Bridge Pavement
Brand: Zhongtuo
SKU: 24668462

concrete floor scabbler|Hand driven pneumatic chisel used for concrete bridge pavement

Product description:

The concrete floor scabbler chisel is a tool that handles the surface of the main body that has been completed so that the construction surface of the two construction stages is similar to the tool of 'chopping ax'. Usually cutting hair machine is used in the present Rao concrete structure, in the cast plate Raojiao finished, to chisel hair, the next layer of pouring, so that the concrete bond firmly. So "cutting hair machine" is also generally known as "concrete cutting hair machine."

Products use:

Concrete floor scabbling for the highway bridge, airports, bridges, parking lots and other concrete floor of the new pavement on the ground surface of the concrete floating slurry removal, to achieve uniform and rough design. The machine is also widely used in a variety of old ground to do before the renovation of the floor to remove the damaged parts of the ground scabbling concrete floor, epoxy, do anti-slip surface, do a new layer of hair, fully reflect the low cost and efficient application value The At the same time for the reservoir, dam leakage, dangerous bridge bridge reinforcement, power plants, highways, high-speed railway, tunnel letters and other building reinforcement, and its wide range of applications.

. scabbling concrete floor Zhongtuo1.jpg

Product parameters:

machine type	ZTMS—11A	ZTMS—15A	ZTMS—23A
weight	80KG	108KG	156KG
Working width	1260mm	1260mm	1260mm
B.P.M The number of hammers per minute	2200﹡11	2200﹡15	2200﹡23
Air consumption	500l/min	700l/min	900l/min
The noise level is decibel	56db	56db	56db
Vibration Level Mean Equivalent	4.96 Square meter per second	4.96 Square meter per second	4.96 Square meter per second
Air compressor matching requirements	Pressure of 5 kg / cm,Displacement of 0.8 cubic meters / min	Pressure of 5 kg / cm,Displacement of 0.8 cubic meters / min	Pressure of 5 kg / cm,Displacement of 1.0 cubic meters / min
Speak concrete mark concrete mark	Work efficiency	Work efficiency	Work efficiency
C50 concrete	25-30 square meters / hour @ 1-3 mm	40-50 square meters per hour @ 1-3 millimeters	50-60 square meters per hour @ 1-3 millimeters
C40 concrete	32-37 square meters per hour @ 1-3 millimeters	50-60 square meters per hour @ 1-3 millimeters	60-70 square meters per hour @ 1-3 millimeters
C30 concrete	40-45square meters / sales @ 1-3 mm	60-70 square meters per hour @ 1-3 millimeters	70-80 square meters per hour @ 1-3 millimeters

Concrete floor scabbler development

The traditional method of cutting the hair of the machine: the use of a sharp strike tool in the concrete surface of the piston to fight, so that the old and new concrete bonded firmly. However, the traditional method of cutting hair has a variety of drawbacks, such as inefficient, mechanical oscillation caused by acoustic transmission, injury was chiseled body and thus affected by the chisel body life.

At present, for a small area of chisel hair (local chisel hair, facade chisel hair, side chisel hair, the top chisel hair), you can use hand-held small hair cutting machine, the effect is good, and will not cause the original structure damage.

Because now a lot of chiseled machinery products will not only undermine the protective layer of scabbling concrete floor, but also the destruction of the original structure and even catastrophic destruction, so now in many projects, especially the bridge, tunnel concrete chisel broken , Many large-scale mechanical scissors have been banned. The most widely used and safe is the "lossless chisel" of high pressure water jets.
