Hand Held Gasoline Internal Combustion Rock Drill

Hand Held Gasoline Internal Combustion Rock Drill

Main View Product Description: 1. hydraulic split tonnage up to 1200 tons -2100 tons. 2. can basically replace the traditional explosive blasting construction, construction costs are low. 3. no vibration, no stone splash phenomenon, safety, and environmental protection. Customers think we have to do, the customer did not think we have to do A product description: The piston rock splitter is mainly composed of two parts: high hydraulic pump station and split rod. 140-180MP The output of the ultrahigh pressure oil pump station acts on the wall of the split body, and the rock is split in the predetermined direction at (1600t). Two products use: 1. Large-scale stone field without blasting mining stone, split with split rods, can get larger stones piston rock splitter hydraulic. 2. Open mining gold, silver, lead, lead, aluminum and other metal mines, with the hole drill hole using hydraulic plunger split rod can quickly split the ore body, safe, efficient, no vibration. 3. When a huge rock is required to be split in a subway tunnel under a city building and a dynamite can not be used, a split bar can be used to effectively divide the rockpiston rock splitter machine. 4. Geotechnical engineering in the large rock division, removal, instead of picks, instead of broken hammer, instead of expansion agent on the mountain without blasting excavation.
Send Inquiry



Product number

Borehole diameter
  (mm)

Minimum drilling

depth(mm)

Working pressure
  (Mpa)

Zhang Kaili
  (T)

power(kW)

Voltage(V)

Machine weight(kg)

LRD-75

80～85

900mm

100～120

1200

3

380

30

LRD-85

90～95

900mm

100～120

1300

3

380

35

LRD-95

100～105

900mm

100～120

1600

3/5.5

380

40

LRD-140

150～155

900mm

100～120

2100

5.5

380

65

Four-piston rock splitter in use Note:

1 to the station to add anti-wear hydraulic oil, to be filled. There are cursors under the hydraulic station, with reference to the cursor.

2 need to take a good three-phase four-wire 380v. The motor needs to be transmitted in a clockwise direction.

3 will be high-pressure tubing and the splitting rod connected to the tubing color can be divided into blue, black, blue tube high pressure, black tube low pressure.

4 drilling rig, 90 holes, the depth of the shallow 1 meter 2. Can not be shallow

4 bar distance 50, and the distance from the surface 50. This is for the granite mining standards. According to rock and rock. Working time is short, that is, the piston from the cylinder is out of time. In 1 minute before the split rock can achieve the obvious effect. First, the piston rock splitter equipment rod into the 90 holes, be sure to ensure that all the pistons into. Start the power, turn the manual valve to the blue tubing, began to enter the oil, the piston began to protrude, and in the hole to the direction of the temporary direction of the thrust, the rock surface will appear split lines. The hydraulic oil table shows the hydraulic pressure to 120mp, the hydraulic station to stop working, in the holding state, which means that work to complete. As long as the manual valve black tubing, piston contraction, artificial proposed. Repeat, easy to operate, easy to learn.





If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998

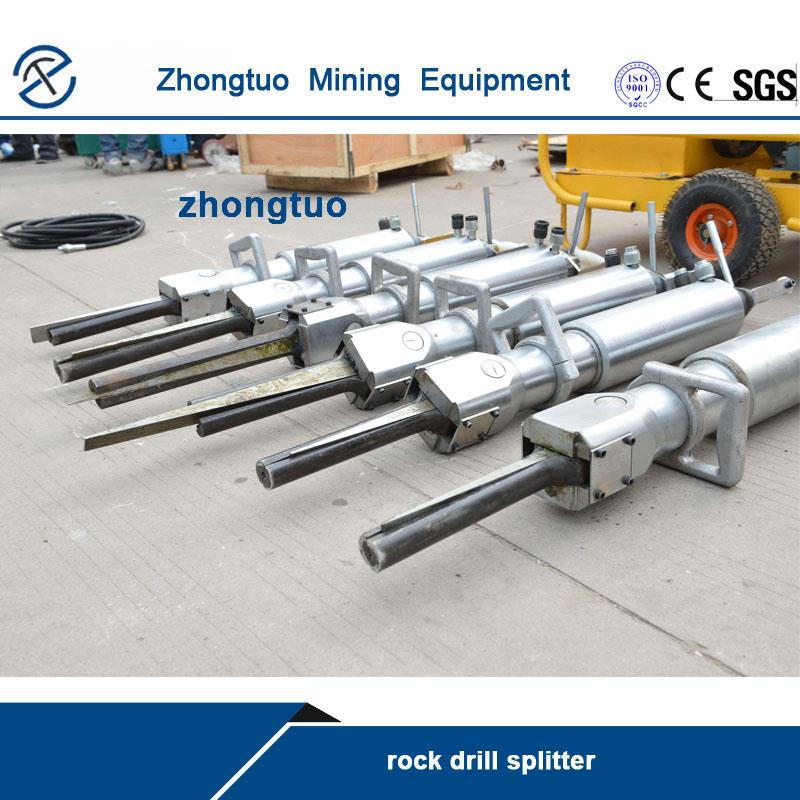

granite rock splitter
