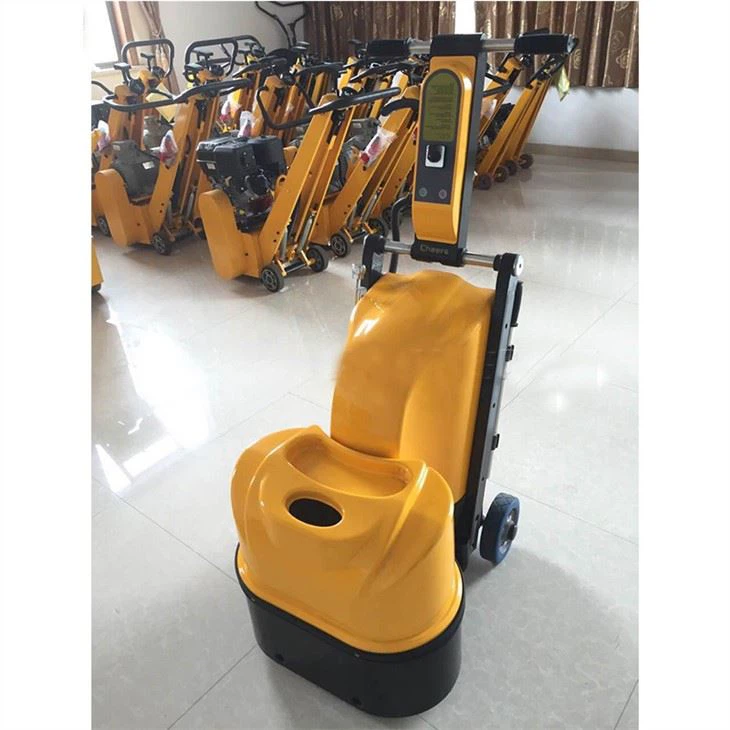

Concrete Floor Grinder Machine
video
Concrete Floor Grinder Machine

Concrete Floor Grinder Machine

1.Voltage:220v/380v;
2.Power:4kw(5hp);
3.Working width:540mm;
4.Disc quanlity:6;
5.Warranty: One Year;
6.After-sales Service: Tracking Guidance & Service;

Application:

Concrete Floor Grinder Machine can handle all kinds of epoxy ground grinding, old epoxy floor renovation, seal curing agent floor grinding, polishing, crystal surface, cleaning multi-function machine, and stone and marble renovation.

Technical Parameter:

Model12T-54012T-640
Voltage220V220V
Phase1/3Phrase1/3Phrase
Power4KW(5ph)7.5KW(5ph)
Frequency50/60HZ50/60HZ
Working width540mm630mm
Disc quantity612
Rotating speed1000-1800rpm1000-1800
Water tank volume36L60L
Weight155kg290

Features:

1. The foldable handle is easy to move, and the fuselage is detachable for easy handling.

2. Adjustable pressure system to meet different construction needs.

3. The concrete grinder machine can be equipped with vacuuming equipment to realize dry and wet working modes.

4. A low center of gravity front design, and stable operation, can achieve the best construction effect.

5. The polishing machine adopts imported power with reliable quality, and its performance and quality are strictly guaranteed.

6. Adopt a high-strength self-locking rope device, which has the advantages of durability, convenience, and labor-saving.

floor grinder-0d

Preparation for floor grinder:

1. Must be connected to an electric protector and the earth.

2. Adjust the height of the operating handle so that the machine can be pulled down to the best state. Pull the handle down and raise the whole base.

3. The bottom of the Concrete Floor Grinder Machine is magnetic, only need to adsorb the diamond tool or the adapter that absorbs the adhesive resin grinding disc.

4. Check whether the indicator light ( on the back) is on after power is on and whether the panel parameters are displayed normally.

5. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, causing the motor to overheat and burn out.

Our company has been founded in the mining construction equipment industry for more than 20 years. We have a professional technical team to ensure product quality and service. If you have any related product requirements, please contact us.
