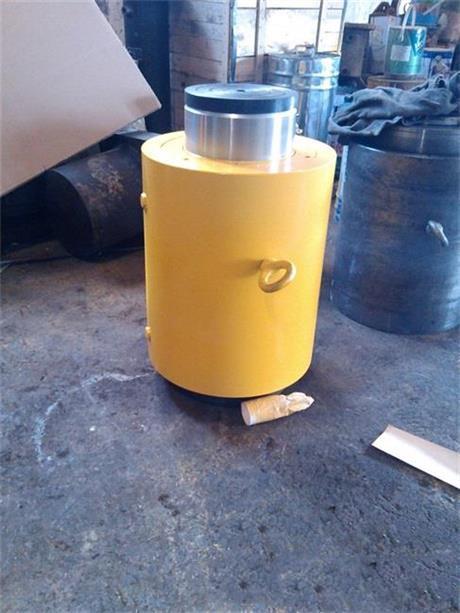

Description of Lock nut Hydraulic Jack:
Application of Lock nut Hydraulic Jack:
Bridge construction is very complex, the reliability of the equipment directly affects the success or failure of the project. Hydraulic system for the bridge structure of the support, Hydraulic Cylinder Jack lifting, and other applications to provide a reliable guarantee. In the bridge erection works.
Parameters of Lock nut Hydraulic Jack:
| Model | tonnage on | Stroke cm | Body height mm | Stretch height mm | Cylinder outside diameter D(mm) | Weight Kg | Maximum working pressure Mpa(bar) |
| DS-50×4 | 5 | 6.35 | 40 | 46.35 | 64×52 | 1.0 | 40(400) |
| DS-100×4 | 10 | 11.2 | 48 | 59.2 | 83×66 | 1.4 | 63 (630) |
| DS-200×4 | 20 | 11.2 | 56 | 67.2 | 100×84 | 3.1 | 63 (630) |
| DS-300×4 | 30 | 12.7 | 66 | 78.7 | 128×105 | 4.5 | 63 (630) |
| DS-500×4 | 50 | 16 | 75 | 91 | 145×128 | 6.8 | 63 (630) |
| DS-750×4 | 75 | 16 | 86 | 102 | 188×158 | 11.4 | 63 (630) |
| DS-1000×4 | 100 | 16 | 96 | 112 | 208×182 | 14.5 | 63 (630) |
| DS-1500×4 | 150 | 16 | 106 | 122 | 250×220 | 26.3 | 63 (630) |
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
