Products Description
1
Features

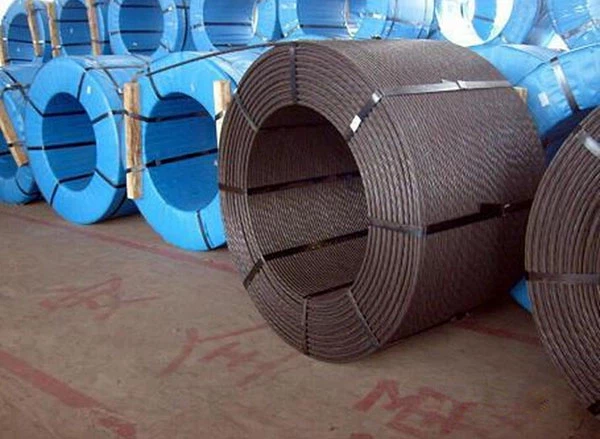

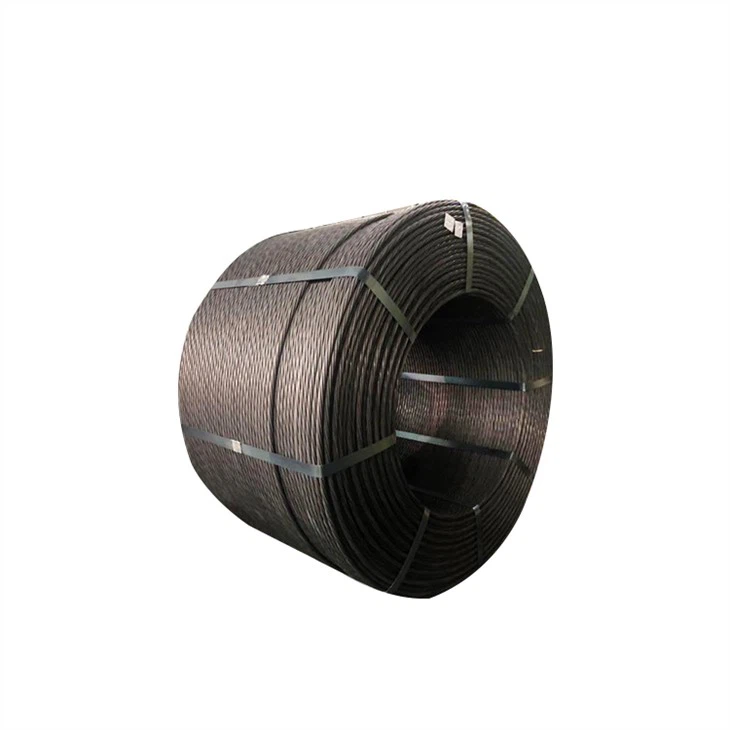

◆Bridge Tension Steel Strands made up of stranded steel wires can be divided into prestressed steel strands, unbonded steel strands, galvanized steel strands, etc.
◆Galvanized steel strands are commonly used for load-bearing cables, pull wires, reinforcement cores, etc. It can also be used as a ground wire for overhead power transmission, blocking cables on both sides of roads, or structural cables in building structures.
◆Prestressed strands Commonly used prestressed strands are uncoated low relaxation prestressed
strands, and some are galvanized.
2
Technical Parameter
| Dia(mm) | Tensile Strength(Rm/MPa) | Max strength for hole wire(Fm/kN) | StipulatedNominal Non proportional extension rate(Fp0.2/kN) | Cross section size(mm2) | Approximate weight(g/m) | Tolerance(mm) |
| 12.7 | ≥1860 | ≥185.1 | ≥166 | 98.7 | 775 | +0.4~-0.2 |
| 15.2 | ≥1860 | ≥262.5 | ≥235 | 150 | 1178 | +0.4~-0.2 |
| 12.8 | ≥1860 | ≥358 | ≥318 | 191 | 1500 | +0.4~-0.2 |
3
Application
Prestressed steel wire strand is usually used in highway bridges, railway bridges, urban interchanges, urban light rails, high-rise buildings, water conservancy and hydropower dams, port terminals, rock slope protection anchoring, foundation reinforcement, tunnel roof anchoring, prestressed grids, subways, large buildings, warehouses, towers Construction, heavy lifting, sliding film intermittent jacking, bridge, and tunnel jacking, large containers and ships, sleepers, bridge bearing replacement, bridge, and building reinforcement, etc.
4
Calculation of Prestressed Tensile Force of Steel Strand
The prestressed tensioning construction design of the prestressed steel strand controls the tensioning force, which refers to the tensioning force of the steel strand before the anchoring fixture after the prestressed tensioning is completed. Therefore, in the calculation of the theoretical elongation of the prestressed tension of the steel strand, the distance between the anchor points at both ends of the steel strand should be used as the calculated length of the steel strand, but the controlled tension of the steel strand during prestressed tensioning The tension is controlled at the jack tool anchor, so for the convenience of control and calculation, the distance between the anchor points at both ends of the steel strand, plus the working length of the steel strand in the tension jack, is used as the pre-strand of the steel strand. Calc
5
Why Choose Us
1. Shaanxi Zhongtuo Mine Equipment Co. Ltd is a foreign trade company, with its own factory offering products and providing free technical advice.
2. The company in business for many years and served Over 50 countries customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have better service, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
6
Contact Us
If you have any related product requirements, please contact us.
