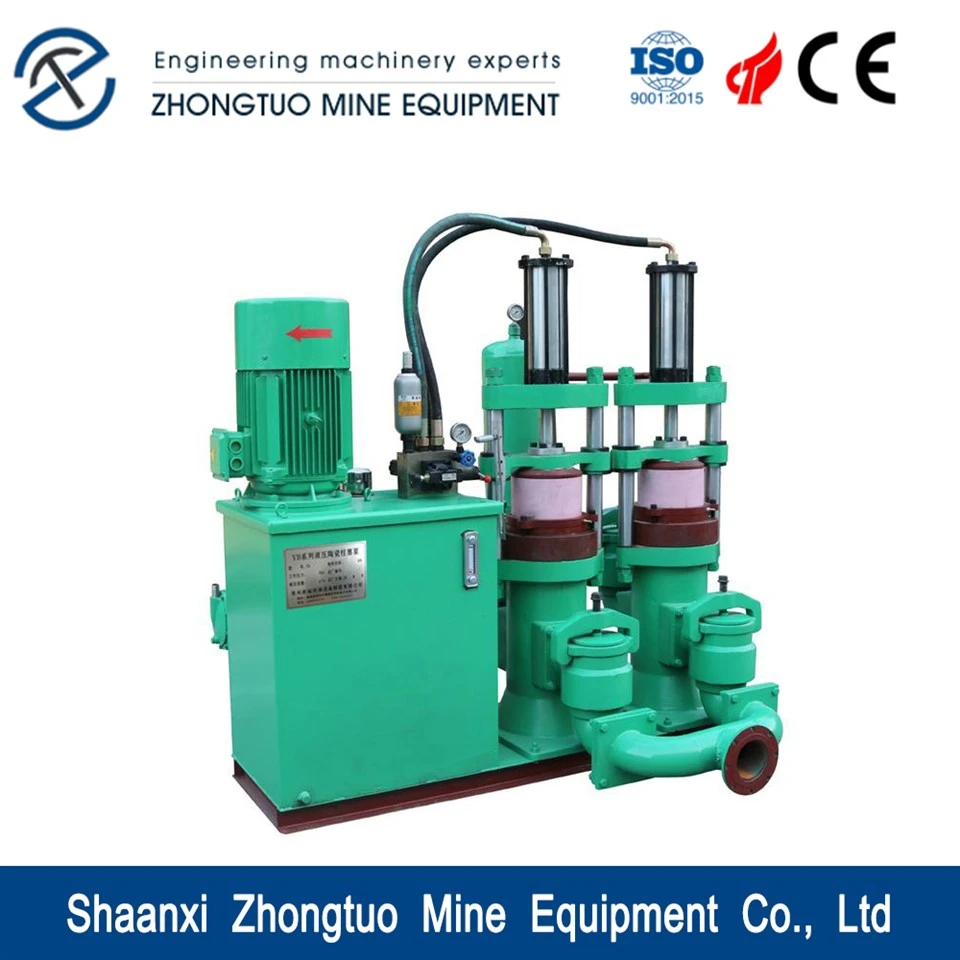

YB Series Ceramic Plunger Pump
|
YB series ceramic plunger pump is hydraulically driven, using a ceramic alumina plunger and combined sealing method. The pump body and pump cover of the ceramic pump are made of acid-resistant ceramics, which have super strong corrosion resistance and wear resistance. This pump is also known as the YB series ceramic plunger mud pump, and its core function is the transportation of liquid. It relies on the reciprocating motion of the plunger in the cylinder to change the volume of the sealed working chamber to achieve liquid suction and discharge. Can be used as a feed pump for ceramic plunger filter press, filter press feed pump, etc.
Why Choose YB Series ceramic plunger pump?
1. The main function is to transport liquids, slurries, suspended particles, with a solid content of 70% and particles smaller than 2mm. |
 |
Technical Parameter of YB Series ceramic plunger pump
|
Model |
Pressure range(Mpa) |
Rated flow(m³/h) |
Effective |
Motor power(kw) |
Inlet(mm) |
Outlet(mm) |
Weight(KG) |
|
YB-85 |
0.1-2.5 MPa |
3 |
220 |
4 |
58 |
58 |
550 |
|
YB-140 |
0.1-2.5 MPa |
11 |
220 |
11 |
89 |
76 |
950 |
|
YB-200 |
0.1-2.5 MPa |
19 |
220 |
18.5 |
108 |
89 |
1250 |
|
YB-250 |
0.1-2.5 MPa |
30 |
220 |
22 |
133 |
108 |
1750 |
|
YB-300 |
0.1-2.5 MPa |
45 |
220 |
30 |
159 |
133 |
2200 |
|
YB-300 |
0.1-2.5 MPa |
60 |
350 |
37 |
159 |
133 |
2850 |
|
YB-350 |
0.1-2.5 MPa |
100 |
420 |
55 |
219 |
159 |
5250 |
|
YB-400 |
0.1-2.5 MPa |
120 |
420 |
55 |
219 |
219 |
5850 |
|
YH-85 |
0.1-2.5 MPa |
3 |
220 |
2.2 |
58 |
58 |
550 |
|
YH-140 |
0.1-2.5 MPa |
11 |
220 |
5.5 |
89 |
76 |
950 |
|
YH-200 |
0.1-2.5 MPa |
19 |
220 |
7.5 |
108 |
89 |
1250 |
|
YH-250 |
0.1-2.5 MPa |
30 |
220 |
11 |
133 |
108 |
1750 |
|
YH-300 |
0.1-2.5 MPa |
45 |
220 |
18.5 |
159 |
133 |
2200 |
|
YH-300 |
0.1-2.5 MPa |
60 |
350 |
22 |
159 |
133 |
2850 |
|
YH-350 |
0.1-2.5 MPa |
100 |
420 |
37 |
219 |
159 |
5250 |
|
YH-400 |
0.1-2.5 MPa |
120 |
420 |
37 |
219 |
219 |
5850 |
Technical Features of YB Series ceramic plunger pump
1. Hydraulic-driven dual cylinder operation, high pressure, large flow rate, high head, and extremely low loss;
2. The hydraulic system runs smoothly and is reliable for continuous long-term operation;
3. Self-suction function, vertical self-suction, no need to pair with other devices, saving money;
4. The pressure regulation range is large, adjustable, and controllable, with small pressure fluctuations and low noise;
5. Can transport high-concentration suspended slurry with solid particles smaller than 2mm; And a smaller proportion of large particles pass through.
|
|
|
If you want to learn more details about this, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Application of YB Series ceramic plunger pump
1. Can be used independently
2. Paired with the filter press, it is a dedicated pump and feed pump for the filter press
3. Matched with spray tower and other drying equipment
Application areas of pumps
1. Mining industry: transportation of tailings, kaolin, talcum powder, clay, bentonite, washed mud, washed sand, metal ore, metallurgy, oil refining, coking, wastewater treatment and solid particle transportation in washed ore.
2. Paper industry: Conveying liquid materials such as pulp and waste paper.
3. Electric porcelain industry: powder raw material transportation and waste disposal.
4. Ceramic industry: solid particle transportation of raw materials and waste materials, used in conjunction with filter presses.
5. Coal washing industry: liquid transportation of coal slurry and ash and wastewater treatment
6. Chemical industry: sewage treatment and slurry transportation
7. Sewage treatment: Treatment and improvement of sewage discharge from municipal sewage treatment plants
8. Food industry: secondary utilization of sewage treatment and waste transportation
Usage of YB Series ceramic plunger pump
The core function of YB ceramic plunger pump is the transportation of liquid. It relies on the reciprocating motion of the plunger in the cylinder to change the volume of the sealed working chamber to achieve the suction and discharge of liquid. Therefore, ceramic plunger pumps are widely used in many industries to replace traditional diaphragm pumps, screw pumps, centrifugal pumps, etc.
1. Used alone
2. Paired with the filter press, it is a dedicated pump and feed pump for the filter press
3. Matched with spray tower and other drying equipment
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Advantages of YB Series ceramic plunger pump
|
1. A ceramic plunger pump paired with a filter press can replace 4-5 old-fashioned diaphragm pumps, reducing floor space, saving a lot of maintenance work, lowering maintenance costs, and reducing electricity consumption.
|
 |
 |
4. The solid content in the liquid can be up to 70%. It can also be used for a pressurized spray of various liquid slurry. It is a supporting equipment for spray drying tower and other drying equipment
5. Can be used as a filter press feed pump, filter press feed pump, filter press special pump, etc
6. Advantages of being used as a feed pump for filter presses: energy-saving, saving more than 60% of energy compared to centrifugal pumps, slurry pumps, and screw pumps, low maintenance costs, and only requiring replacement of valve plates and rubber seals each time.
|
Delivered of YB Series ceramic plunger pump
