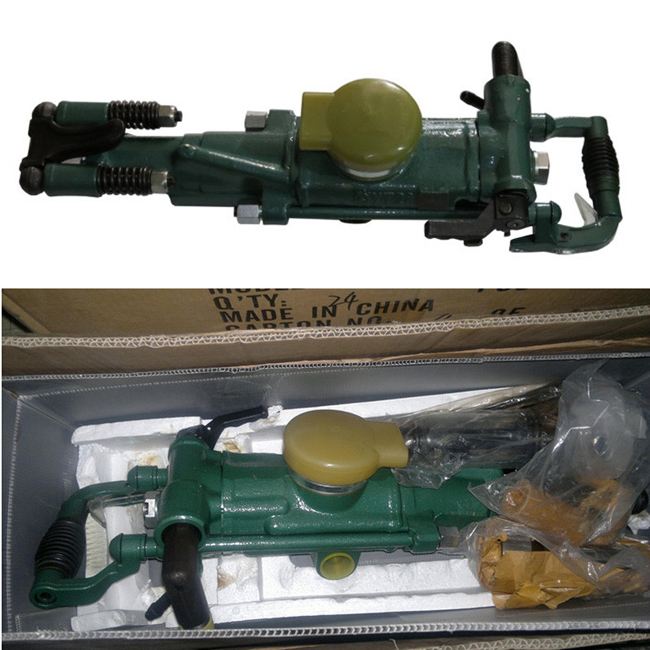

Pneumatic Hand-Held Rock Drill Jack Hammer Y28
video
Pneumatic Hand-Held Rock Drill Jack Hammer Y28

Pneumatic Hand-Held Rock Drill Jack Hammer Y28

1.Durable
2.high-performing and cost-efficient.
2.Easy handling
3.The power flows. The toughness is clear. It’s performance in the palm of your hand.

Introduction of Pneumatic Hand-Held Rock Drill Jack Hammer Y28:

Underground rock drills – robust design

Y28 hand-held rock driller is suitable for wet drilling in medium-hard rock or hard rock. The grouped control mechanism, quick to start up, with “air on”, “water on”, “air off”, “water off” function, convenient to handle and easy to maintain and repair.
Energy-saving and efficient, all parts have a long service life, are interchangeable, and offer reliable performance.


Pneumatic Hand-Held Rock Drill Jack Hammer Y28 covers all construction, tunneling, and mining applications in different rock formations. They are robustly designed, with high impact energy and low air consumption. All of the rock drills have water flushing, and rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the rock drill forms an attractive and cost-effective drilling unit.


Pneumatic Hand-Held Rock Drill Jack Hammer Y28


Fitting and removing the working drill


Surface rock drills – productive, reliable, and economical for your application

Pneumatic Hand-Held Rock Drill Jack Hammer Y28 is suitable for all kinds of surface drilling. They are easy to use, reliable, and can work with low air pressure from 4 bar and upwards. An inline lubricator is included in the delivery of the Y28 rock drill. Y26 has a built-in lubricator. Both types of rock drills are delivered with air flushing. When a light rock drill is needed, Y28 is a perfect choice for light construction, light quarrying, and secondary blasting.

Pneumatic Hand-Held Rock Drill Jack Hammer Y28

Parameters of Pneumatic Hand-Held Rock Drill Jack Hammer Y28:

Machine weight26kg
Captain661mm
Cylinder diameter80mm
Piston stroke60mm
Working pressure0.5-0.6mpa
Impact frequency≥34≥37Hz
Gas consumption≤55≤81l/min
Tracheal diameter25mm
Water pipe diameter13mm
Drilling head diameter
34-42mm
Drill tail size(hexagonal*length)22*108mm
Air leg length1400mm
Advance the journey965mm
Cylinder bore65mm
Quantity≈14.4kg
FT160BC type air leg(long air leg)

Air leg length1800mm
Advance the journey1365mm
Cylinder bore65mm
Quality≈16.9kg
FY200B-FY200C-type oiler oiler
200ml
Quality1.02kg
