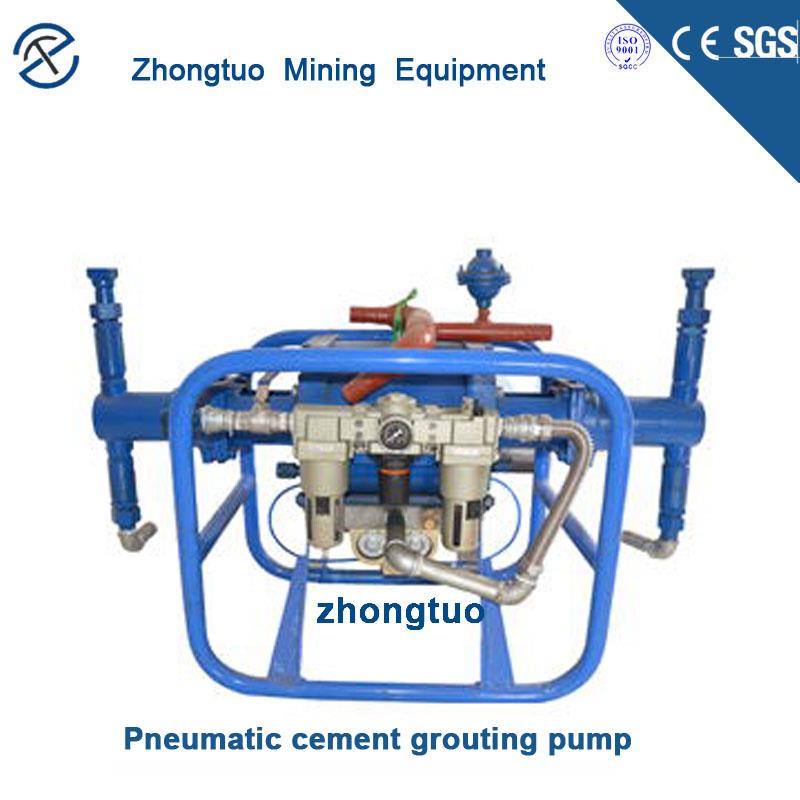

Description of Pneumatic grouting pump
-
The basic structure of the pneumatic grouting pump is mainly composed of a pipe frame, a cylinder, a piston, an end cover, a connection box, a liquid cylinder, an inlet and outlet cylinder, and a directional valve, and some auxiliary parts. It is widely used for grouting and water blocking in mines, subways, tunnels, water conservancy, and construction, as well as grouting and condensation projects in broken rock formations.
Specification
|
Model No. |
Air Consumption (m3/min) |
Flow |
Power (Mpa) |
Weight (kg) |
Dimension (LxWxH) |
|
|
L/min |
m3/h |
|||||
|
2ZBQ10/5 |
0.5 |
≤10 |
≤0.6 |
≤5 |
18 |
600x300x440mm |
|
2ZBQ50/4 |
0.7 |
≤50 |
≤3.0 |
≤4 |
41 |
800x400x700mm |
|
2ZBQ24/10 |
≤24 |
≤1.44 |
≤10 |
|||
|
2ZBQ130/3 |
1.5 |
≤130 |
≤7.8 |
≤3.5 |
83 |
1300x500x1000mm |
|
2ZBQ96/5 |
≤96 |
≤5.78 |
≤5 |
|||
|
2ZBQ70/7 |
≤70 |
≤4.2 |
≤7 |
|||
|
2ZBQ40/11 |
≤40 |
≤2.4 |
≤11 |
|||
|
2ZBQ150/6 |
3.0 |
≤150 |
≤9.0 |
≤6 |
110 |
1300x600x1200mm |
|
2ZBA110/8 |
≤110 |
≤6.6 |
≤8 |
|||
|
2ZBQ80/11 |
≤80 |
≤4.8 |
≤11 |
|||
|
2ZBQ50/19 |
≤50 |
≤3.0 |
≤19 |
|||
Adopts pneumatic drive, which has the characteristics of small volume and lightweight. The grouting pressure is inversely proportional to the flow rate of soft characteristics. The grouting liquid delivery function has high working efficiency. When grouting in shallow layers, it can effectively play a role in protecting the rock structure unchanged.
