Products Description
1
Working Theory

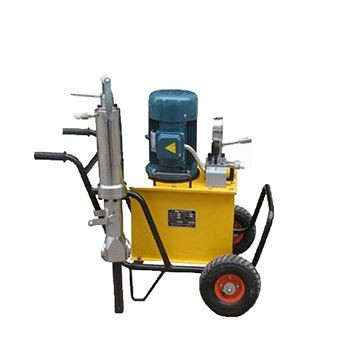

The hydraulic stone splitter is designed by using the wedge principle to grasp the brittleness of rock and concrete - it can release great splitting force outward in a narrow hole. The high-pressure oil output from the pump station drives the oil cylinder to generate huge thrust, which drives the middle wedge in the wedge group to drive forward and stretch the reverse wedge to both sides. Therefore, the huge rocks can be easily split with a splitting machine in a few seconds, so that the hard ores can be separated from the mountains.
2
Technical Parameter
| Model | Drilling diameter(mm) | Drilling depth(mm) | Theoretical split(t) | Piston stroke (mm) | Splitting time | Wedge length(mm) |
| ZT250 | 40 | 450 | 800 | 90-200 | 10-15s | 250 |
| ZT350 | 42 | 550 | 820 | 90-200 | 10-15s | 350 |
| ZT450 | 50 | 650 | 840 | 90-200 | 10-15s | 450 |
2
Products Description
Advantages
1. Controlled directional cracking. The required direction of the crack can be obtained by just positioning the handle of the splitter perpendicular to the direction of the required crack.
2. Much faster and greater output as compared to the conventional chiseling/chipping methods as the output is directly proportional to the No. holes drilled.
3. Noiseless, Environ-friendly, and dust-free operation.
4. Single-person operation.
3
How To Use Hydraulic Rock Splitter
The wedges are placed into a drilled hole. When a splitter is operated, the power pack produces high-pressure oil to drive the piston of the splitter cylinder which in turn pushes the middle wedge down. The downward movements of the middle wedge force two counter wedges against the wall of the hole. When the tension increases beyond the tensile strength of the material, a split will occur.
Step 1: Drill the holes in the rock/concrete required to split of suitable diameter and length.
Step 2: Put the wedge group of cylinders into the hole. Check the position before starting the splitter.
Step 3: Once the splitter is initiated, a crack will be developed due to the expansion of counter wedges. The cracking direction of the rock/concrete is the same as that of the splitter handle.
4
Application
The splitting machine is suitable for the mining of rocks of various textures, will not produce vibration, noise, dust, etc. during the work, and can realize silent mining without affecting the surrounding. It only takes a few seconds to rupture once, and it is a fast and fast mountain-making machine, such as the mining of marble, granite, bluestone, silica, calcite, and other stones.
5
Company qualification
Shaanxi Zhongtuo Mining Equipment Co., Ltd. was located in the ancient city of Xi'an in 2005. The company focuses on the production and development of intelligent equipment, and the research and development results of 20 invention patents, some of which have completed intelligent, digital, and automated upgrading and transformation. The products are used in bridge construction, tunnel and subway construction, mining and hydropower new energy projects, and provide one-stop procurement services for the use of design solutions. Exquisite craftsmanship and a rigorous inspection process ensure the smooth progress of the project.
6
