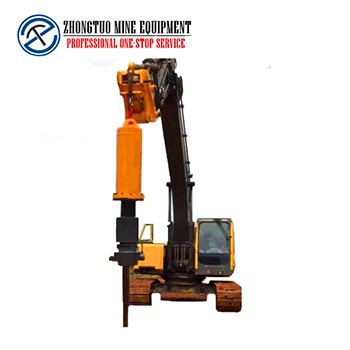

Huge Rock Splitter for Excavator

Ultra-large rock splitters are mounted on a regular excavator and used for the excavation of large volumes of hard to very hard rock.
Explosives or large rock breakers are the normal methods for excavation of hard rock. But restrictions on blasting are getting stricter and the use of rock breakers is not always feasible due to vibrations, noise restrictions, or simply hard rock. Yamamoto ultra-large rock splitters offer an alternative method for efficient excavation of large volumes of hard rock without the need for explosives, vibrations, or fly rock. The splitter can be mounted from a crane or a normal excavator for open pits or shafts, or mounted on a specialized carrier for horizontal tunneling.

Contact:

Summer Zhu

Mobile/Wechat/Whatsapp: +86 13571973823

Email: summer@ztmineequipment.com

Introduction of Huge Rock Splitter for Excavator:

Hydraulic rock and concrete splitters provide a powerful and extremely cost-effective alternative to other conventional demolition techniques. Hydraulic splitting means controlled splitting, and this method eliminates shock waves, vibrations, dust, and noise that large impact tools usually produce. DARDA rock and concrete splitters have been used with great success in over 80 countries for the past 30 years. The high quality, reliability, and durability of the equipment are unsurpassed.

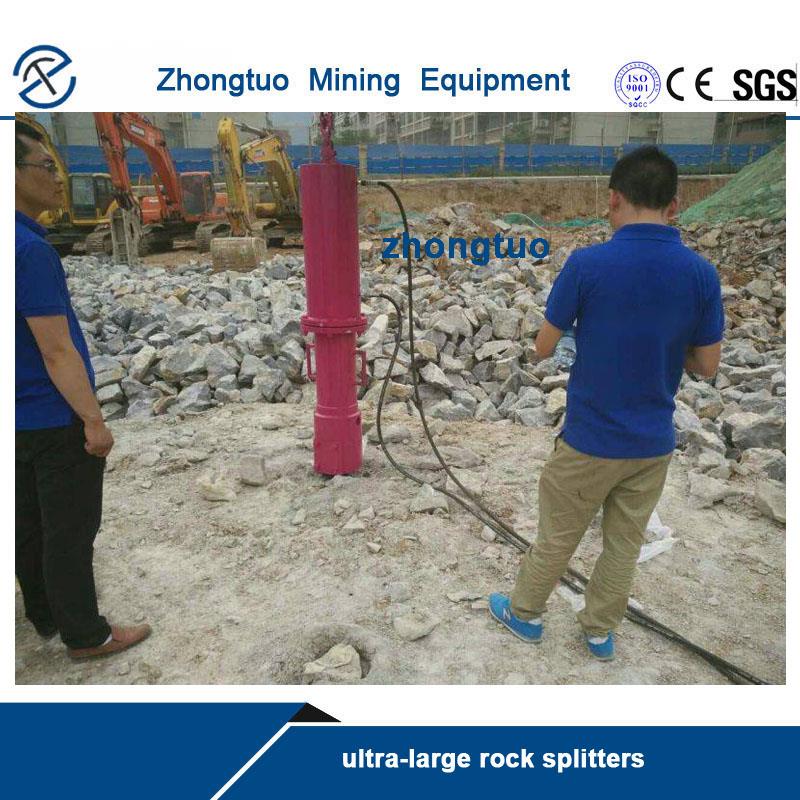

ultra-large rock splitters4.jpg

How the Huge Rock Splitter for Excavator works:

Conventional demolition techniques destroy rock and concrete by using an external force. However, because of their compressive strength, these materials are highly resistant to impact forces. For optimum results, one should adopt a splitting technique that works from the inside of the material, because rock and concrete have a lower tensile strength. The DARDA hydraulic splitters were developed to do just this and work according to a safe and proven wedge principle.

First of all, a hole is drilled to a specified diameter and depth using an ordinary rock drill. Then the wedge set is inserted into the hole with the wedge in a retracted position. The hydraulic pressure then forces the wedge between the two counter wedges, pressing them against the walls of the drilled hole. The effective splitting force of up to 413 tons or 4048 kN breaks concrete and rock from the inside, breaking thinner iron rods at the same time.


Product parameters of Huge Rock Splitter for Excavator:

Technical parameters of the airborne split machine
Model	Split block length mm	drilling depth m	nominal working pressure MPa	disruptive forces	crack width	Opposite hole form	Machine weight KG
ZT220-P90	800-900	1300mm	24-25	3300- 3600	25- 30	The chain of manual hole	600
ZT260-P100	950-1000	1700mm	24-25	4400- 5200	30-25	The chain of manual hole	650
ZTN50-P100	1000-1200	2100mm	24-25	6000	30-25	The chain of manual hole	730
