Description:

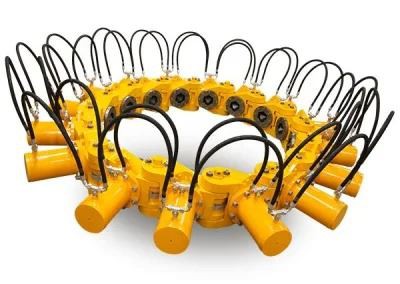

The hydraulic pile breaker is an advanced, efficient, and time-saving system for trimming concrete outcrops and foundation piles. The pile breaker produces a perfect horizontal pile-cutting finish, it doesn't damage the reinforcement or leave cracks below the cut-off level. This efficient pile-cutting system is extremely modular, making it easy to adjust to each concrete pile diameter at the site. The pile breaker is many times faster than the traditional concrete breaking process and is fully automated throughout its operation. The concrete pile breaker is easy to handle and maintain as it doesn't require special skills. This reduces risk costs and extends its service life.
Technical Parameter:
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max. Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pin Φ35 | |||||||
| Max. Cylinder Trip | 300mm | Chisel diameter | 110mm | Single module weight | 335KG | ||||||||
| Max. Cylinder Pressure | 300MPa | Max. Hoist Capacity | ≤500mm | Single module size | 1015*865*340mm | ||||||||
Product Details:
Advantages:
1. Hydraulic pile breaker, high efficiency, low noise pile cutting.
2. Modularization: cutting pile heads of different diameters can be realized by combining different numbers of modules.
3. Cost-effective, low operating cost.
4. The operation of pile breaking is simple, no professional skills are required, and the operation is quite safe.
5. Pile-breaking machines can be connected with a variety of construction machinery to truly achieve the universality and economy of the product. Can be hung on excavators, cranes, telescopic booms, and other construction machinery.
6. The design of high life brings benefits to customers.
7. The conical top design avoids the accumulation of soil in the guide flange, avoiding the problem of steel stuck, deviation, and easy fracture.
8. The steel drill that rotates at any time effectively prevents the vibration in the high-pressure cylinder, prevents the fracture of the connection, and has the effect of earthquake resistance.
Routine Maintenance:
1. Regularly check the oil filter, and clean or replace it in time if it is found to be dirty.
3. Oil change, usually every 3000 hours or so (depending on the working environment, the oil change interval can be extended under better environmental conditions, and the oil change interval should be shortened under harsh environmental conditions). Clean the mailbox carefully, flushing the entire oil circuit if necessary.
4. The oil temperature should be kept below 70℃, and the best operating temperature is 35~55℃. Under special conditions, pay attention to heating and cooling.
