Honda GX 270-9 HP Powered Concrete Surface Planer

1. The hand-push hair chipping machine is used to remove the raised parts and laitance of concrete floors, bridges.
2. The chisel head is made of high-quality hardness alloy, with large impact force and long life.
3. Good shock absorption structure to ensure that the operator can work comfortably.
4. The structure design is scientific and reasonable, and it is easy to replace the chisel head and knife cover.

Description of Honda GX 270-9 HP Powered Concrete Surface Planer:

Honda GX 270-9 HP Powered Concrete Surface Planer is a light motor drive ground milling machine to 7.5kw kilowatts Y132M-4 variable speed motor as the driving force, the use of forward cutting the working principle, can quickly cut the ground material! Working principle: Unlike the large-scale milling machine's anti-cutting principle, the small milling machine relies on the positive high-speed rotation of the milling drum, so as to shake the six groups of hard tungsten steel alloy blades on the milling cutter shaft. , The use of alloy blade on the tungsten steel alloy teeth to break and ground the ground material, so as to achieve the effect of surface milling;

Honda GX 270-9 HP Powered Concrete Surface Planer is mainly used for highway, urban roads, airports, freight yard and other asphalt concrete surface of the excavation renovation, can also be used to remove the road package, oil waves, textures, rutting and other defects can also be used to excavate pits and ditch Groove, and the cement road surface of the hair and the surface of the wrong level of milling.

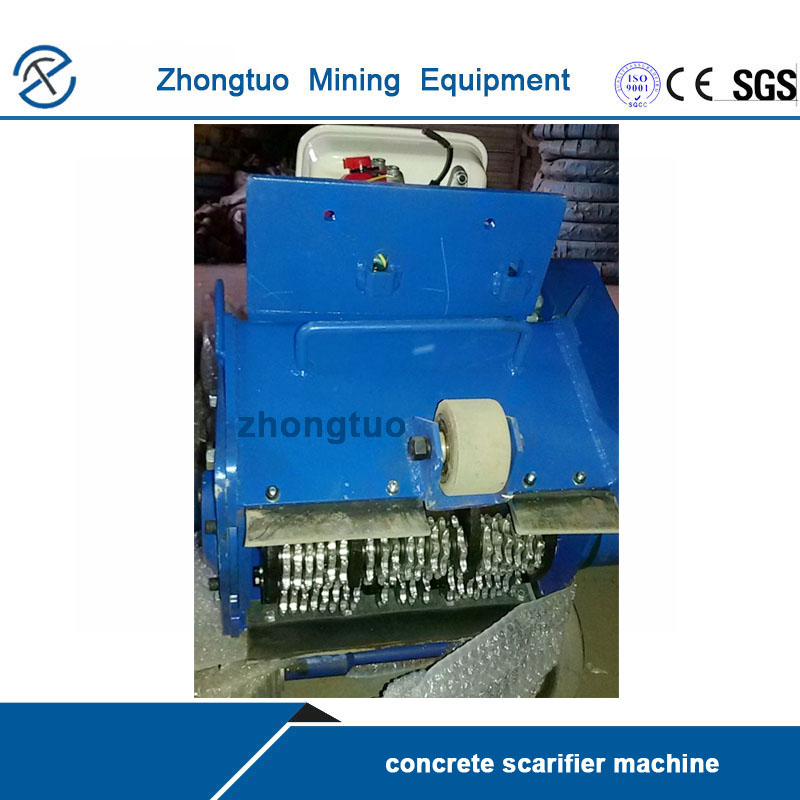

scarifying machine-009 scarifying machine-005

Parameters of Concrete Surface Planer:

Power configuration	Three-phase asynchronous motor/5.5KW（CW200D） Honda GX270 Gasoline Engine/13HP（WC200F）	Three-phase asynchronous motor/7.5KW（CW255D） Honda GX270 Gasoline Engine/13HP（WC255F）
Number of knife shafts	6root	6root
Number of blades	78 pieces(6 teeth)	108pieces(6 teeth)
Bearing seal form	Sealed(maintenance-free)	Sealed(maintenance-free)
Milling width	200mm	250mm
Milling depth	3mm-5mm	3mm-5mm
Weight	90kg	115kg
LengthWidthHigh	11255001125mm	11255001125mm
Hourly work efficiency	150 square meters	170 square meters
Walking wheel	4only	4only
Air damping tube	2only	2only

Honda GX 270-9 HP Powered Concrete Surface Planer

Honda GX 270-9 HP Powered Concrete Surface Planer is one of the main types of asphalt pavement maintenance and construction machinery. It is one of the main equipment for asphalt concrete pavement maintenance and construction. It is mainly used for the excavation and renovation of asphalt concrete surfaces such as highways, urban roads, airports, and freight yards. It is used to remove defects such as road congestion, oil wave, net pattern, rutting, etc., and can also be used to excavate pavement pots and trenches.
