Description & Operation:

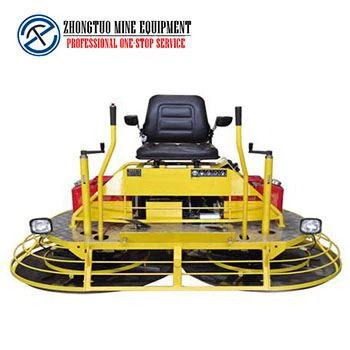

The concrete riding power trowel main structure is a gasoline engine-driven spatula rotor with a spatula on the underside of the cross in the middle of the rotor. The inclination direction of the spatula is consistent with the rotation direction of the rotor, and the gasoline engine drives the V-belt to rotate the spatula rotor. When operating, start the fire first, hold the joystick, push the two together to move forward, and pull them back together to move backward.
Advantage:
1. Ride-on operating relieves the pressure on you and increases efficiency.
2. Two blades make purifying rapid and uniform.

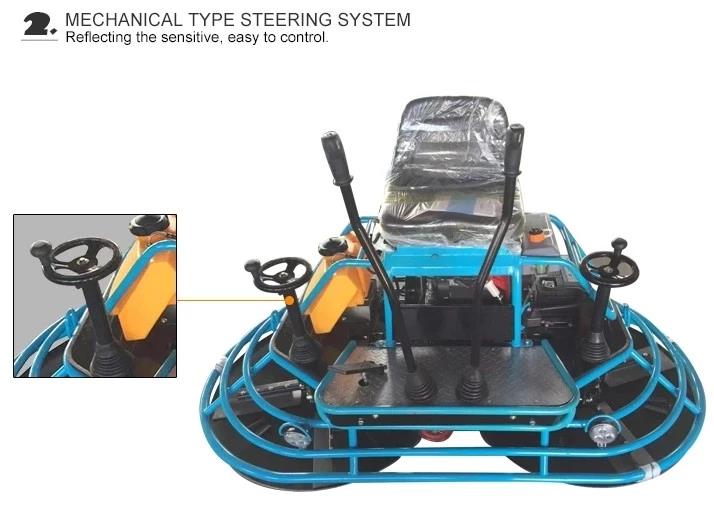

3. Easy and comfortable operation with a mechanical system.
4. A safety switch guarantees your security.
5. 24 hours working with water spray and lighting equipment.
Main parameter:
| Model | ZT80L | ZT100L |
| Engine type | Honda | Honda |
| Power |
9.6(13.0)kw/hp
|
17.6(24.0)kw/hp
|
|
Blade/Power
|
70-150/3600rpm
|
70-150/3600rpm
|
|
working diameter
|
1910*1030mm
|
1910*1030
|
|
Disc diameter
|
800mm
|
100mm |
| Blade size | 1260*150mm |
350*150
|
| Weight | 260kg | 386kg |
Application:
The concrete polishing trowel machine is suitable for large and small construction sites and can be operated indoors and outdoors. It is widely used in high-standard workshops, warehouses, squares, airports, parking lot, pavement, road and bridge maintenance, and concrete surface. It is the first choice for concrete construction.
Our company has been founded in the mining construction equipment industry for more than 20 years. We have a professional technical team to ensure product quality and service.
If you have any related product requirements, please contact us.
