Description:

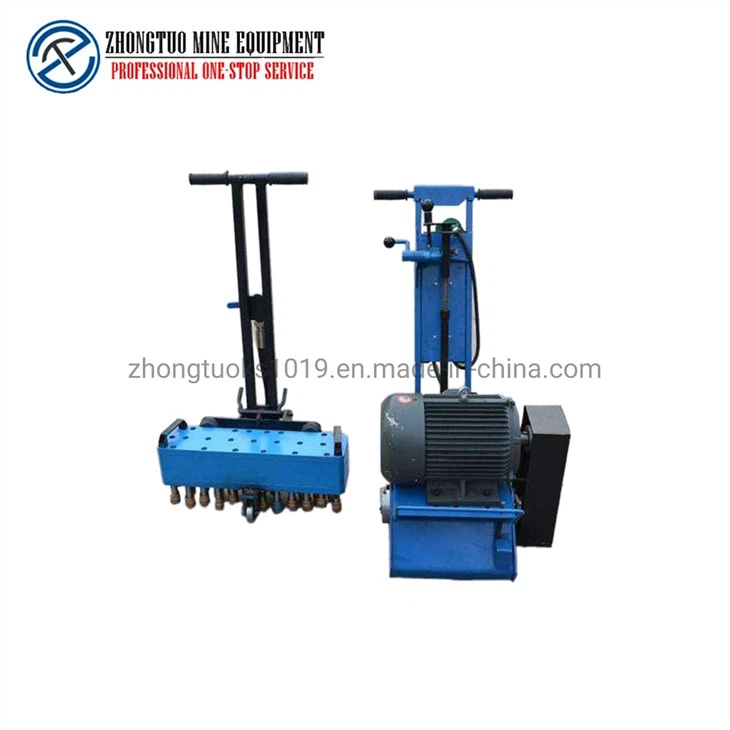

The cement floor scraper chisel is a tool used to treat the finished body surface, so the construction surface for the two construction stages is similar to the"cracking axe" tool. Usually, the hair-cutting machine is used in the current Rao concrete structure. After the casting board is finished, the chiseling is performed, and the next layer is poured to make the concrete firmly adhere.
Technical Parameter:
Machine type | ZTMS-11A | ZTMS-15A | ZTMS-23A |
Weight | 80KG | 108KG | 156KG |
Working width | 1260mm | 1260mm | 1260mm |
P.MThenumberofhammers perminuteB.P.M |
2200*11 | 2200*15 | 2200*23 |
Air consumption | 500l/min | 700l/min | 900l/min |
Thenoiselevel(decibel) | 56db | 56db | 56db |
Vibration Level Mean Equivalent | 4.96M2/S | 4.96M2/S | 4.96M2/S |
Air compressor matching requirements |
Pressureof5kg/cm, | Pressureof5kg/cm, | Pressureof5kg/cm |
Displacement of 0.8m3/min | Displacement of 0.8m3/min | Displacement of 0.8m3/min | |
Concrete mark | Work efficiency | Work efficiency | Work efficiency |
C50 | 25-30m2/h | 40-50m2/h | 50-60m2/h |
C40 | 32-37m2/h | 50-60m2/h | 60-70m2/h |
C30 | 40-45m2/h | 60-70m2/h | 70-80m2/h |
Application:
The cement floor scraper chisel is used for new roads such as highway bridges, airports, bridges, parking lots, and other concrete floors. The concrete slurry is removed from the ground to achieve a uniform and rough design. The machine is also widely used in various old grounds to do ground renovation before removing the damaged parts of the ground, sc cement floor, making epoxy, making non-slip surface, and making new hair layer, fully demonstrating the low cost and high-efficiency application value. The products are used for the reinforcement of reservoirs, dam leakage, bridge reinforcement of dangerous bridges, power plants, highways, high-speed railways, tunnel letters and other buildings.
Zhong Tuo:
Our company has been founded in the mining construction equipment industry for more than 20 years. We have a professional technical team to ensure product quality and service. If you have any related product requirements, please contact us.
