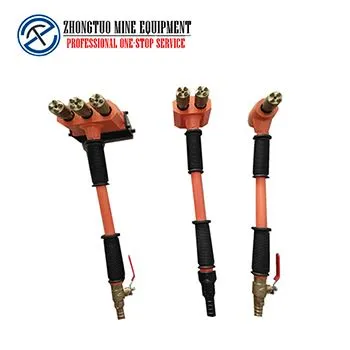

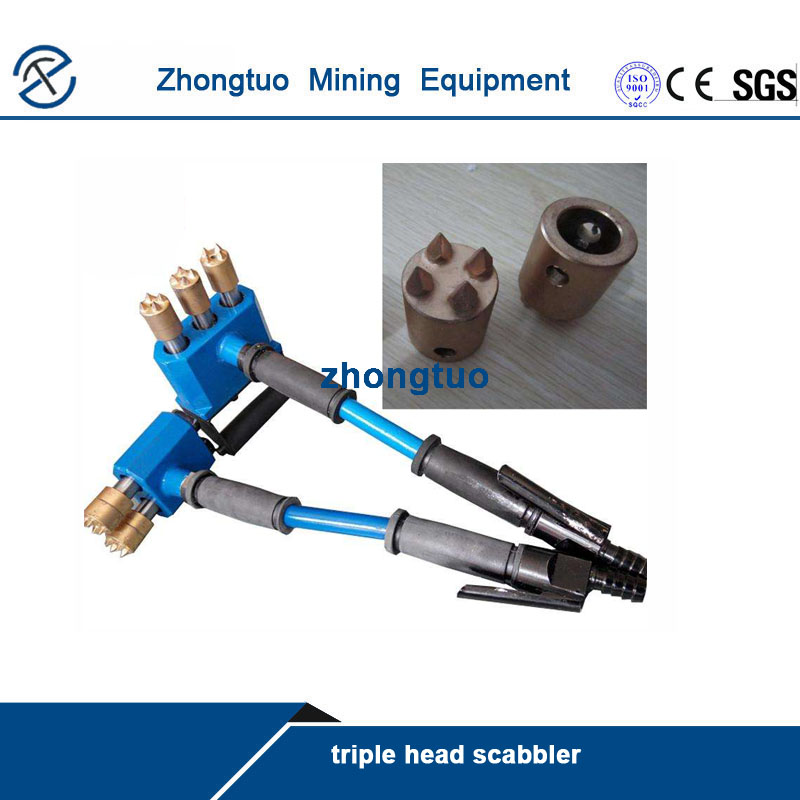

Hand-Held Scrabbler is a lightweight and compact tool, equipped with tungsten-carbide tipped pistons. The pistons oscillate inside the head or cylinder of the scrabbler and strike the surface of the material being worked on. All the scribblers have three pistons mounted in line.
The cycling of the pistons occurs due to the air porting arrangements in the piston assembly. The machines are examples of a valveless piston motor.
Parameters of Handheld scrabbler:
Model | Weight (kg) | Hit the number Blow/min | Displacement(m3)/pressure(kg) | Operation method | Chisel head diameter x Headcount | Chisel ability m2/h (thickness) | |
3mm | 5mm | ||||||
FC-1B | 2.2 | 2400 | 0.6 m3/5kg | handheld | ￠31x1 | 4-5 | 3.5-4 |
FC-2A | 3.5 | 2x2400 | 0.8 m3/5kg | handheld | ￠31x2 | 6-8 | 4-5 |
FC-3C | 5.5 | 3x2400 | 0.9 m3/5kg | handheld | ￠31x3 | 8-10 | 5-6 |
