Specification of Strand Jack Lifting Originates
|
Model |
Safe working load |
Working pressure MPA |
Cylinder stroke mm |
Retraction height mm |
Jack weight kg |
Fixed anchor weight kg |
Boost speed m/h |
Number of strands |
Strand diameter mm |
|
ZT-TSD15 |
15 |
31.5 |
500 |
1846 |
148 |
3.2 |
0-25 |
1 |
18 |
|
ZT-TSD45 |
45 |
31.5 |
500 |
1726 |
600 |
28 |
0-25 |
3 |
18 |
|
ZT-TSD60 |
60 |
31.5 |
500 |
1726 |
630 |
32 |
0-25 |
4 |
18 |
|
ZT-TSD100 |
100 |
31.5 |
500 |
1790 |
930 |
46 |
0-25 |
7 |
18 |
|
ZT-TSD180 |
180 |
31.5 |
500 |
1886 |
1560 |
90 |
0-25 |
12 |
18 |
|
ZT-TSD280 |
280 |
31.5 |
500 |
1938 |
2330 |
130 |
0-25 |
19 |
18 |
|
ZT-TSD300 |
300 |
31.5 |
500 |
1940 |
2460 |
140 |
0-25 |
20 |
18 |
|
ZT-TSD400 |
400 |
31.5 |
500 |
2100 |
3396 |
220 |
0-25 |
27 |
18 |
|
ZT-TSD580 |
580 |
31.5 |
500 |
2220 |
4980 |
260 |
0-25 |
38 |
18 |
|
ZT-TSD680 |
680 |
31.5 |
500 |
2180 |
5410 |
320 |
0-25 |
45 |
18 |
|
ZT-TSD800 |
800 |
31.5 |
500 |
2200 |
6880 |
360 |
0-25 |
54 |
18 |
|
ZT-TSD1000 |
1000 |
31.5 |
500 |
2286 |
8520 |
560 |
0-25 |
66 |
18 |
Product Description:

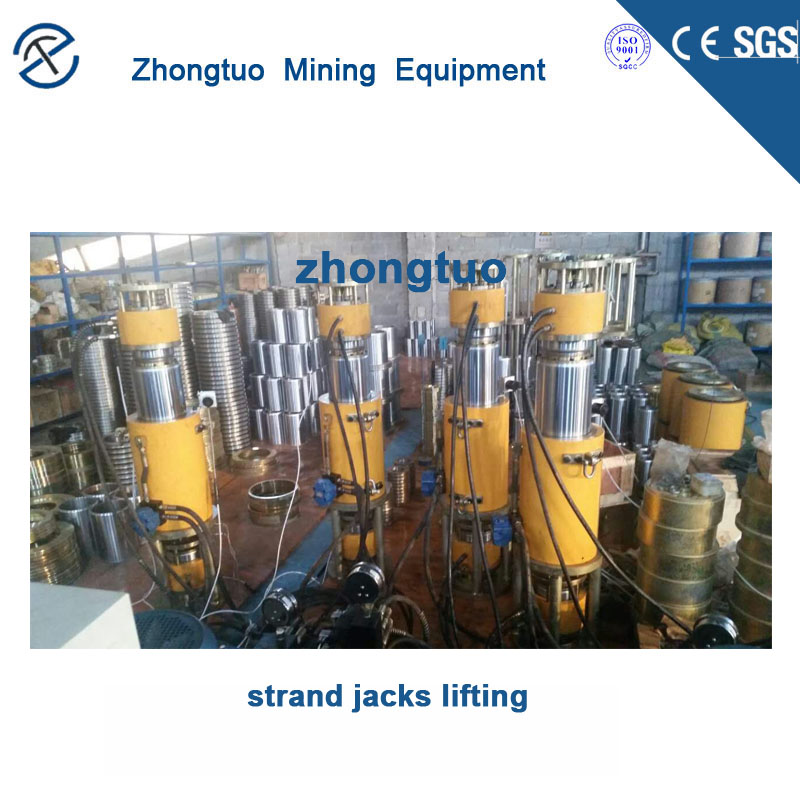

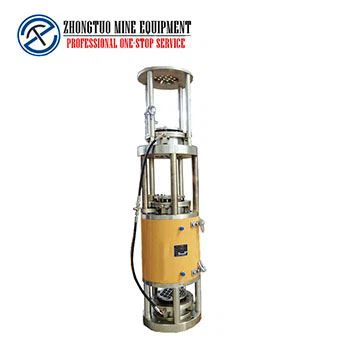

The Strand Jack Lifting originates from the concrete post tensioning principle. A strand jack can be considered a linear winch. In a strand jack, a bundle of steel cables or strands are guided through a hydraulic cylinder; above and below the cylinder are anchor systems with wedges that grip the strand bundle. By stroking the cylinder in and out while the grips are engaged in the anchors, a lifting or lowering movement is achieved.
ZhongTuo's products and services
-
ZhongTuo provides a complete range of services from initial concepts through engineering, planning, equipment supply and the execution of any Heavy Lifting project. The approach is flexible and the extent of ZhongTuo's services is tailored to meet specific project requirements. Services are provided worldwide by the ZhongTuo Group and include:
-
Feasibility studies and preliminary consultation for placing of heavy loads or statically complex structures
-
Project design and planning, equipment specification, scheduling and budgeting
-
Design, manufacture and supply of any special equipment and temporary structures required
-
Leasing and operation of ZhongTuo equipment
-
The execution of strand jack lifting originates works planned either by ZhongTuo or other parties
