Cement Mortar Sprayer,concrete Spraying Machine ,wall Cement Sprayer

Truth & honnor
1.Survival in the industrial jungle We offer typical products and typical prices. But another thing we can sure is no cheating, including what our product is?&how much it worth?
2.We always support you the best offer with sincerety.
3.Warrenty overseas, that’s not true and we never promise that but we can help you with video technical guide and all the spare part with a satisfyed price.
4.one shot here one reliable supplier there

InquiryChat Now

  • Product Details

Overview

contion: newmax conveying distance: 60/30mplace of origin:Shannxi China
max aggregate size:  4mmvoltage: 380v/50hzDimension:(L*W*H):1560*60*1100cm
certification:  CE&SGSBrand name: ZT construction.

Application: spraying   wall

  &ceiling

Max pressure: 3MPA

Warranty: no after servies over

 seas,but video technical guide.

Color:   customized
weight: 360kgpower:  7.5kwsupply ability: 100 set a month


                        Delivery:            any port of China typically Shanghai
                        Packaging        wooden case with double inner blister package
                         payment             T/T   or     L/C at sight

product details

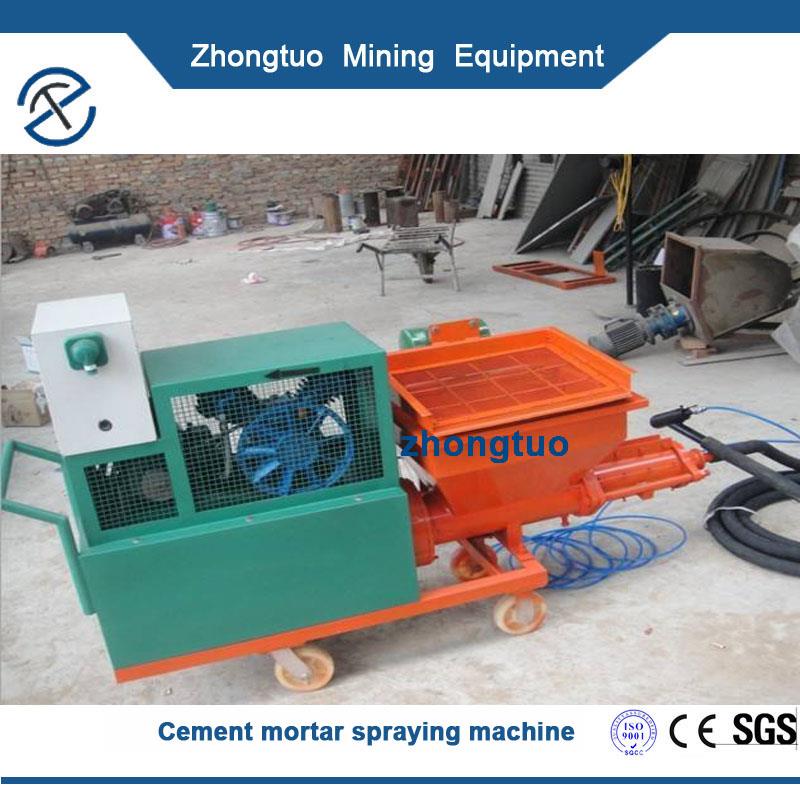

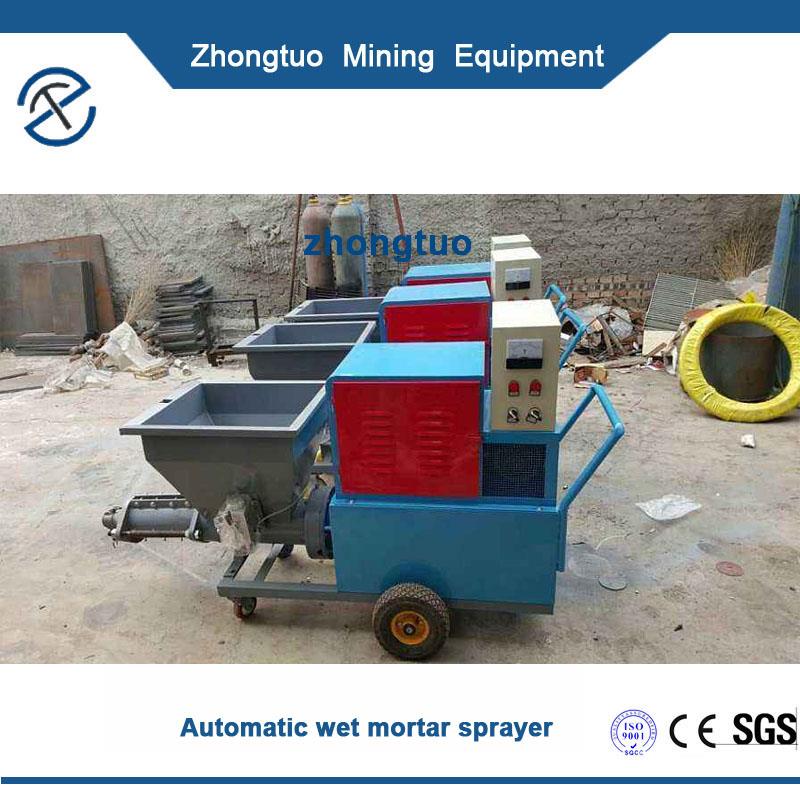

cement mortar spraying machine-01a

cement mortar spraying machine-01b

cement mortar spraying machine-01c

cement mortar spraying machine-01d

cement mortar spraying machine-01e

Operating mannal

1. Before starting, add fresh water into the hopper and regulate the speed to the middle-high speed in order to achieve the effect of wetting pipe, only a short running and then draining the water.

2. Putting the even material stirred into the hopper, and then locking pulp exit of main machine and the pipe & nozzle.

3. Before spraying, filling the pressure of air compressor to 8kg (matched air compressor 0.26-0.36m) and then connected to the nozzle.

4. After connecting to power, putting the gunpoint aiming the hopper, adjusting the air pressure and the speed until achieving the best state of fogging, shutting down the machine but non-stop wind.

5. After the accurate Debug, immediately move the nozzle and spray jets to the construction site work.

6. During the construction process, the pipe is filled with paints, not suitable for parking too long. If the power is failure, you should immediately dismantle the pipe to clean.

7. If filling pressure in the pipe, before dismantling & cleaning, you must put the cloth on it to protect your eyes, avoiding injury.

8. If starting the machine fails, first check whether the fire drills is broken or not and should replace it immediately.

9. Cleaning the body during the working or completion, making sure no wetting the electric drill & box, avoiding damage.

10. After completion of working, must clean up the hoppers, pipes, nozzles, and rotary joints so as to work tomorrow

11. If detecting the exit of coating is weak power after a long time to work, you have to replace the pressure pump.

12. If it suddenly appears without feeding material in the work, while motor is still working, it proves that the nozzle has been plugged. You should immediately stop working and clean the nozzle, and then continue to work.

13. The nozzle is damageable (including the pressure pump). The standard nozzle pore is 4mm. When the fogging of nozzle is not satisfactory, you should immediately replace the nozzle.

14.When manual operate, you should wear a safety helmet, glasses, and protective clothing.

 Notice

1. The construction site must wear protective equipment (such as gloves, masks, goggles, safety helmet)

2. Water and electricity should be provided on site.

3. The hand shall not be in the hopper when driving.

4. The construction site should be safe, covered and smooth.

5. Machinery and circuit should avoid to expose in wet and open place.
