Portable DTH Drill|For Prestressed Anchor Cable Holes And Blasting Holes

It is compatible with ultra-large rock splitters and piston rock splitter hydraulic.

Inquiry

  • Product Details

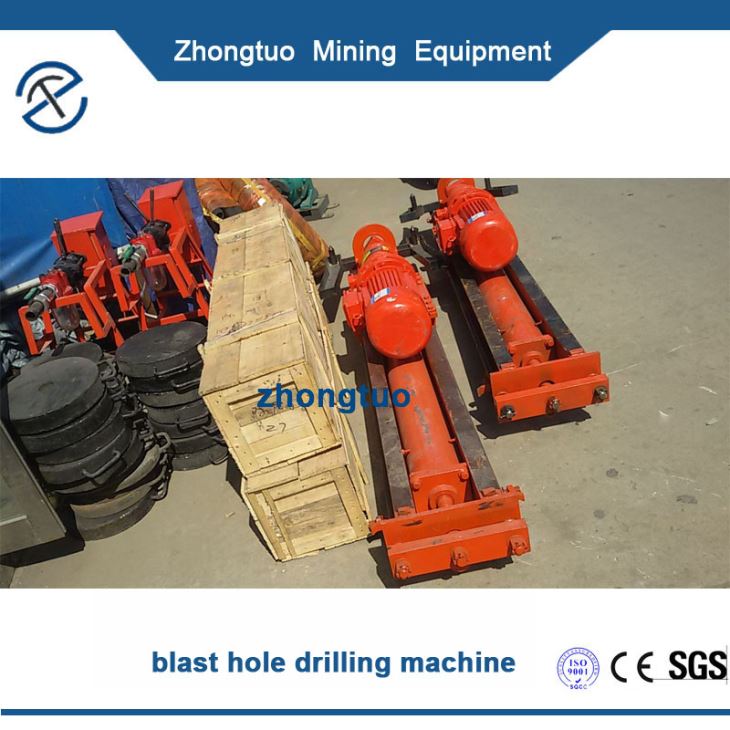

Portable DTH Drill|For prestressed anchor cable holes and blasting holes

Descriptions of Pneumatic DTH Drilling Rig :

1. With motor for rotary power, economy, high efficiency and energy saving

2.Adopt cycloidal or spur gear transmission speed reducer, big rotary torque, drilling in high efficiency.

3. Novel overload protection, and makes drilling machine operation stable and reliable

Characteristics of jupiter rock drills :

1. Compact structure, easy operation, quick cutting speed, high efficiency, good demolition, convenient transport;

2. The energy loss does not increase with the drill rod increasing;

3. Working noise is greatly reduced;

4. Higher degree of mechanization, less auxiliary operation time, improving the drilling rig operating rate.

Parameter of Portable DTH Drill:

Model

Hole diameter

Hole depth

Working pressure

Air consumption

Remark

(mm)

(m)

(MPa)

(m3/min)

ZTD 70

60--80

≥15

0.5—0.7

≥3.5

3kw

ZTD100B

80--100

≥20

0.5—0.7

≥6

4kw

ZTD 100

80--100

≥20

0.5—0.7

≥6

4kw

ZTD 120

80-100

≥20

0.5—0.7

≥6

5.5kw

ZTD145B

90-130

≥50

0.7-1.4

≥12

7.5kw

ZTD150B

90-130

≥50

0.7-1.4

≥12

7.5kw

ZTD165

90-150

≥50

0.7-1.4

≥15


Application of blast hole drilling machine:

Applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations. It is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.
