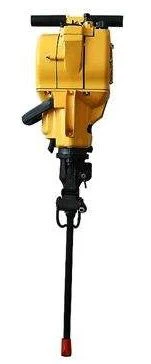

Gasoline Internal Combustion Rock Drill Jack Hammer

Gasoline Internal Combustion Rock Drill Jack Hammer

Introduction of Internal combustion rock drill: Internal combustion rock drill is a very efficient machine, composed of gasoline engine, Air pump, rock drill. It adapt to these outside situations without water and electronic power. Meanwhile it is a hand- held drill, during operation, rock power...

InquiryChat Now

  • Product Details

Introduction of Internal combustion rock drill:

Internal combustion rock drill is a very efficient machine, composed of gasoline engine, Air pump, rock drill.
It adapt to these outside situations without water and electronic power.
Meanwhile it is a hand- held drill, during operation, rock power is blown away by the compressed air produced by the machine itself.
Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.

internal combustion rock drill-01Internal combustion rock drill-02


Features of internal combustiion rock dirll:

1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40)
4. Used to drill vertical downward hole(max depth 6m) and and <45° Upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.

Advantage of internal combustiion rock dirll:
1. Structure is very comact
2. Less of the easy o damage parts, easy to control
3. Adapt to these outside situations there is no water and no electronic power

Specification of internal combustiion rock dirll:


Weight of main machine
27kg
Overall dimensions(L*W*H)746*315*229mm
Cylinder diameter*stroke of pistonΦ58*70mm
Rotation speed of engine≥2450rpm
Displacement of engine piston185cm³
Type of carburetorhand needle valve, floatless type
Ignition systemcontrollable silicon, contactless system
Drilling speed (mean value of five holes)≥250mm/min
Drilling hole diameterΦ28-42mm
Max drilling depth6m
Fuel consumption≤0.12L/m
Tank capacity≥1.5liter
Drill rod and breaker shankHex22*108mm
Rotating speed of drill rod≥200rounds/min
Clearance of spark plug0.5-0.7mm
