Hydraulic Rock Splitter/Quarry Stone Cutting Machine/Concrete Stone Splitter Machine
Rock Splitter, Hydraulic Stone Splitter, Stone Splitting Machine manufacturer / supplier in China, offering Hydraulic Rock Splitter/Quarry Stone Cutting Machine/Concrete Stone Splitter Machine, Petrol Powered Concrete Plate Compactor Rammer, Load Type Wheeled Guardrail Hydraulic Diesel Hammer Pile Driver and so on.

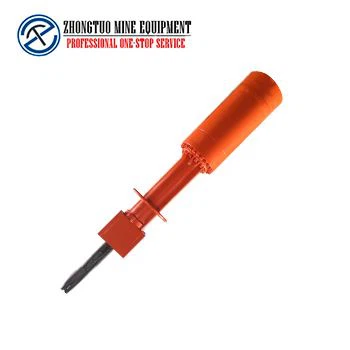

Hydraulic Rock Splitter/Quarry Stone Cutting Machine/Concrete Stone Splitter Machine
Production Features
The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllably split rock or concrete. Especially suit for cabined area where large machine can not work.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
Technical data of Guns
| Model No. | Drilling diameter | Drilling depth | Split block length | Theory splitting force | The actual splitting force | Weight | Crack width |
| (mm)D | (mm)L | (mm)D | (T) | (T) | (kg) | (mm) | |
| HW80-150 | Φ38-42mm | ≥450mm | 150 | 600 | 450 | 25 | 10--30 |
| HW90-250 | Φ40-42mm | ≥550mm | 250 | 680 | 480 | 30 | 10--30 |
| HW90-350 | Φ42-46mm | ≥650mm | 350 | 700 | 500 | 33 | 10--30 |
| HW100-350 | Φ46mm | ≥750mm | 350 | 780 | 600 | 35 | 10--30 |
Technical data of Diesel engine
Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine Power | Working pressure(MPa) | flux(L/m) | Towable of splitter quantity(pc) |
| Diesel engine | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
Technical data of Gasoline engine
Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine power | Working pressure(MPa) | Flux(L/m) | Towable of splitter quantity(pc) |
| Gasoline model | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 |
Technical data of electric engine
Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | Engine power | Working pressure(MPa) | Flux | Towable of splitter quantity(pc) |
| (kg) | (L/M) | ||||||
| Electric motor | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 3KW(380V) | 55-60 | 2 | 1-3 | |
| 7.5KW(380V) | 55-60 | 13 | 1-10 |
