Granite Rock Splitter Manufacturer|Hydraulic Cylinder for Concrete Demolition And Rock Splitting

Granite Rock Splitter Manufacturer|Hydraulic Cylinder for Concrete Demolition And Rock Splitting

Advantages: 1. Directivity: Hydraulic methods means controlled methods, cylinder handle direction will be the splitting direction, especially if user carve a groove on the material, it will get a better effect.
2. Safe: As a alternative technology compare to blasting, impact breaking, hydraulic method is vibration free, impact free, it means more safe than traditional methods.
3. Economical: Hydraulic cylinder only need a very low fuel flow to drive the piston work, according to calculate, more economical then sawing, drilling.
4. High efficiency: Only few seconds the rock splitter can split big stone into parts, and the cracks are deep and width if you try a reasonable settlement and splitting cylinders.
5. Easy Operation: Easy to learn and use, only one person can operation.

InquiryChat Now

  • Product Details

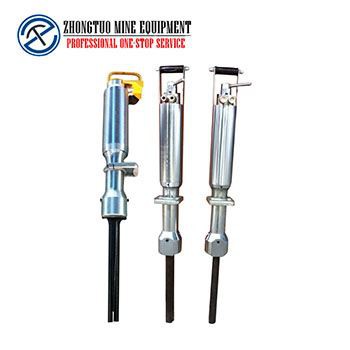

Granite rock splitter

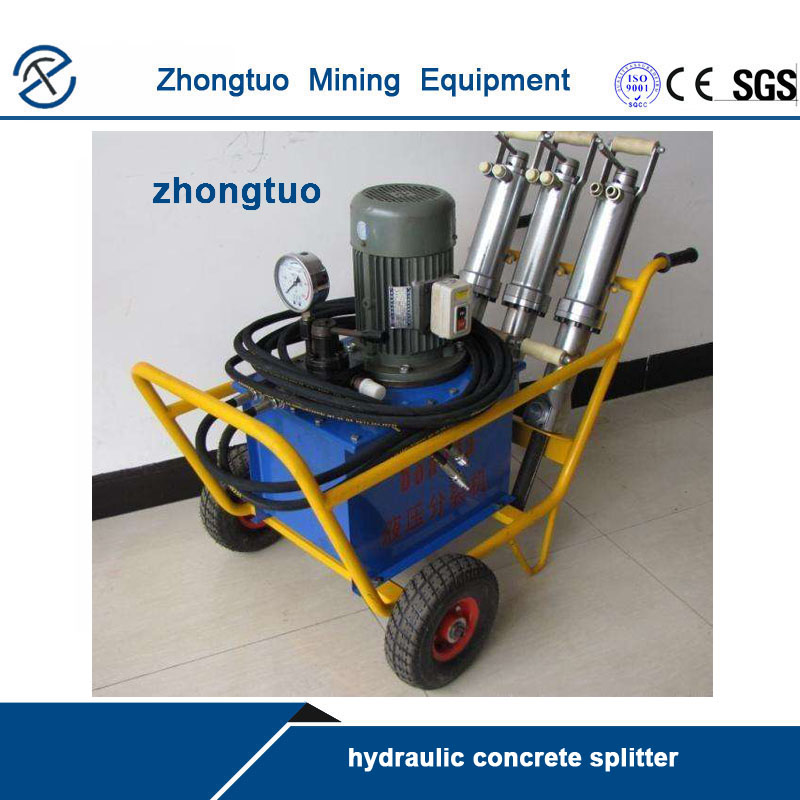

Granite Rock Splitter consist of splitting cylinders and a power unit. Cylinders are powered by the high pressure power unit. Fuel tank piston and wedges are main component of cylinder. It need a pre-drill hole of required depth down on the material for movement of middle wedge. There is a valve on the top of cylinder to control piston work, when the power unit give pressure make the piston work, piston will pressure middle wedge move into bottom, and at the same time, middle wedge will push counter wedges move to sides, a huge horizontal splitting force is produced against to the hole wall, when the tension increases beyond the tensile strength of the material, a split will occur.

hydraulic rock splitter.jpg

Three product parameters:

Product number

Borehole diameter
(mm)

Minimum drilling

depth(mm)

Working pressure
(Mpa)

Zhang Kaili
(T)

power
(kw)

Voltage(V)

Machine weight
(kg)

LRD-75

80~85

900mm

100~120

1200

3

380

30

LRD-85

90~95

900mm

100~120

1300

3

380

35

LRD-95

100~105

900mm

100~120

1600

3/5.5

380

40

LRD-140

150~155

900mm

100~120

2100

5.5

380

65

Applications
Granite Rock Splitter is bigger, splitting force is bigger. Widely use in infrastruction, foundations, civil construction, tunnels, channels, funnels, barriers, dams, underwater demolition, old building demolition, mining and quarry industry, rock dismantle, bridge decks, airport and more.


hydraulic rock splitter (2).jpg
