Pneumatic Injector Pump|used Mines Subways Tunnels Rock Grouting Condensation Works

1 The pump uses compressed air as a power, with a small size, light weight, will not overload the characteristics.
2 can be used in flammable, explosive, strong magnetic, radiation, dust, temperature changes and the place of water, can be safe to use. High-quality services, high-tech innovation, high-speed development

Inquiry

  • Product Details

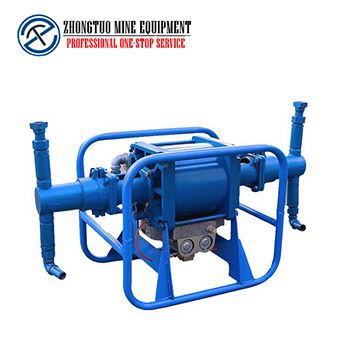

Pneumatic Injector Pump|used mines subways tunnels rock grouting condensation works

Product description:

2ZBQ Pneumatic Injector Pump using compressed air for power, can be in the large shower, high-gas occasions safe use. Can be locked for a long time without heat problems.

Pneumatic Injector Pumpused mines subways tunnels rock grouting condensation works.jpg
Products use:

2ZBQ series pneumatic grouting pump is mainly used for coal mine, iron ore and other well wall waterproofing, reinforcement grouting project, as well as subway, tunnel, water conservancy, construction and other grouting plugging and fracturing rock grouting consolidation project.

Product parameters:

Rated displacement

20L/min

preset pressure

5MPa

Number of sand cylinders

2

Into the pulp pipe diameter

¢32mm

Total Weight

90kg

2ZBQ Pneumatic Injector Pump Note:

Automatic stepless regulation and accurate, no overpressure problem. The pump commutation mechanism has the pneumatic automatic positioning performance, the use of safe and reliable, in accordance with the Pneumatic cement grouting pump automatically adjusts the amount of slurry performance. Can be a single injection of slurry, double slurry and chemical pulp (Luoke Hugh Malisan).

2QZB pump is a low-pressure, high-thrust pneumatic reciprocating pump, you can pour into the slurry, pneumatic injection pump so you can inject thick slurry or folder particles.

Pneumatic Injector Pump for sales.jpg

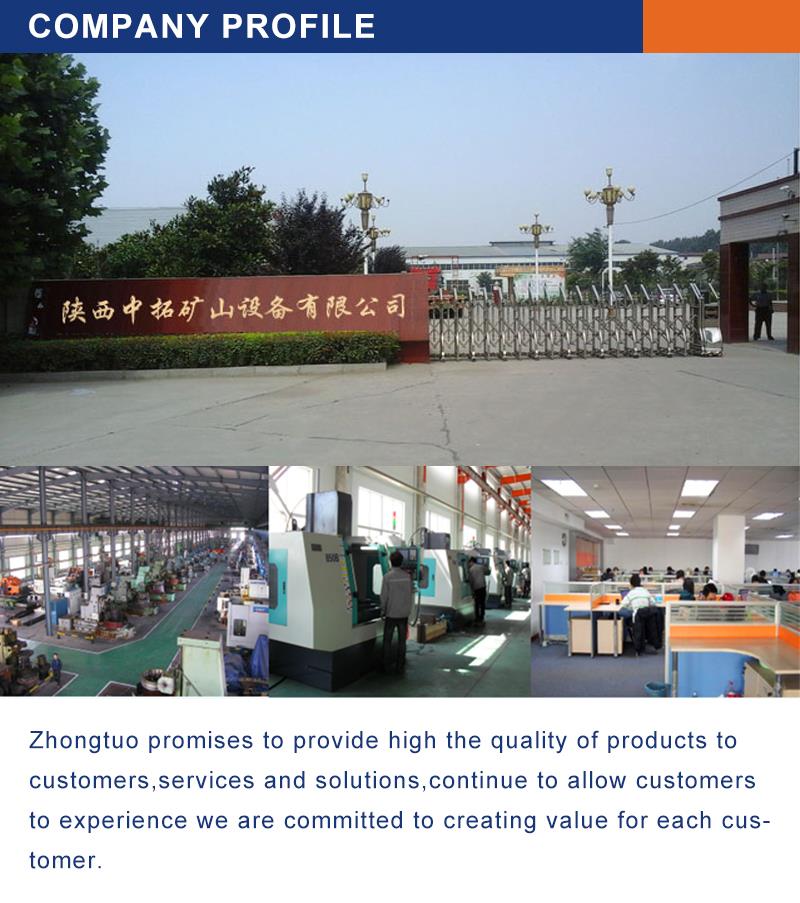

China Pneumatic Injector Pump factory.jpg

 China Pneumatic Injector Pump manufacturers .jpg
