Hydraulic Grout Pump|dual Grouting Pump

Description of hydraulic grout pump
1.The pump adopts hydraulic transmission, so it has small volume, light weight, stable performance, reliable operation and simple operation.
2.The pressure is adjusted arbitrarily in the design range. When the pressure exceeds the set value, the overflow valve opens the system to release the pressure, thus providing protection.

InquiryChat Now

  • Product Details

Description of hydraulic grout pump:

The hydraulic grout pump uses compressed oil or compressed air as the power source, and the cylinder or the cylinder and the grouting cylinder have a large ratio of the working area, so that the cylinder can generate a high injection pressure with a small pressure.

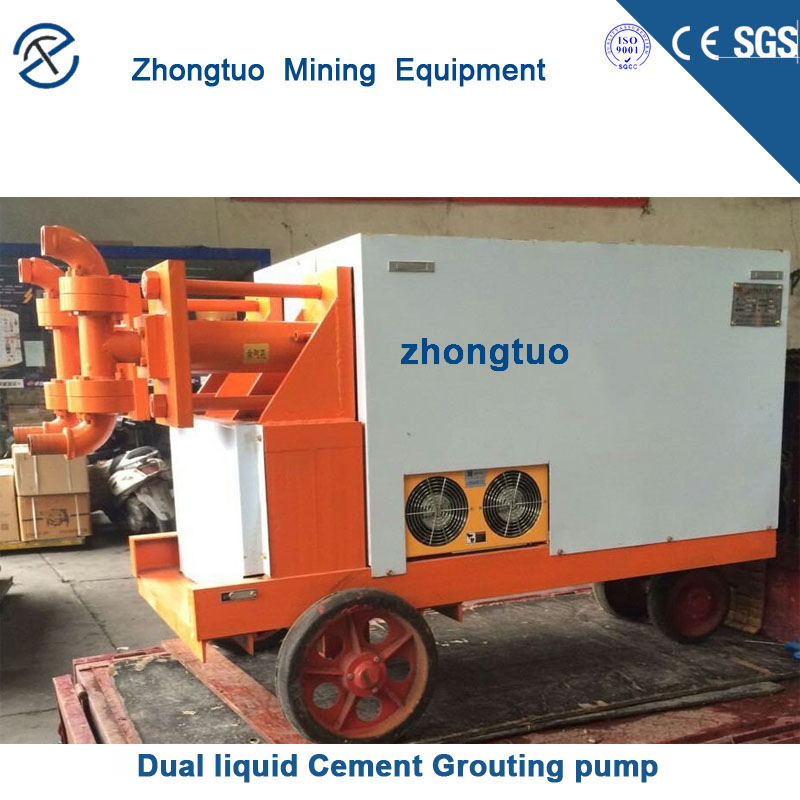

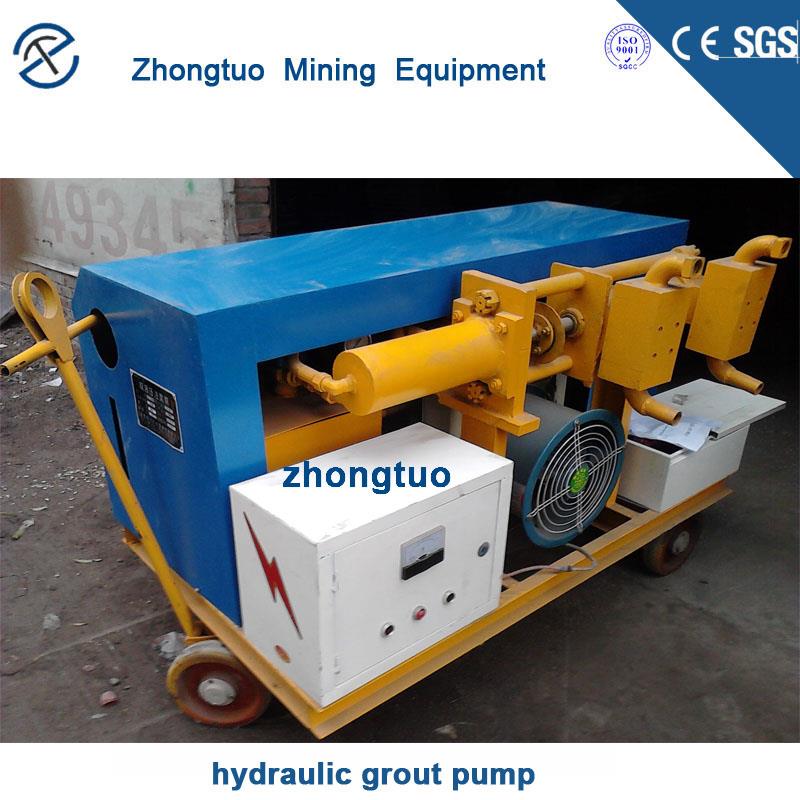

Hydraulic grout pump-01ab   hydraulic grout pumps-0ef.jpg

Advantage:

1.2m3/h 5m3/h small squeeze/ extrusion type hydraulic mortar grout pump
2.High Pressure Squeeze Grout Pump
3.High Quality Grouting Pump
4.Squeeze Type Cement Pump /Slurry Pump /Mortar Convey Machine
5.Factory Price Construction Squeeze Grout Machine/Grouting Pump/Mortar Pump/Cement Slurry Injection Pumps/Machinery Grout

Parameters of Hydraulic grou pump:

Specification

Name

Dual liquid full hydraulic cement grouting pump

Item

Parameter

Theoretical Output

4m/h

Maximum System Pressure

7Mpa

Conveying Pressure

7Mpa

Total Weight

600kg

Overall Dimension

L1550*W1050*H1150mm

Maximum Conveying Distance

200/60m(Horizontal, Vertical)

Main Motor Power

11kw

Voltage Classes

380V

Inner Diameter of Infusion Tube

32mm

Inner Diameter of Absorption Tube

51mm

How to choose cement grouting pump grouting pump:

(1) The grouting pump should have a large adjustment range of slurry discharge, and the change of the final grouting amount and the grouting initial amount is about 8~10 times. The final amount of grouting is small, which proves that it is good to fill and compact.

(2) The grouting pump should have reliable pressure control capability. Because the grouting “filling and compacting” will inevitably form the overpressure of the grouting pump, the pump should reduce the amount of slurry in time to reduce the flow resistance of the slurry in the gap, thus avoiding grouting and fracturing and pavement bulging. , mechanical accidents, etc. The grouting pump preferably has the property of automatically adjusting the amount of slurry as the grouting pressure changes.

(3) The grouting pump should be easy to operate and maintain, safe and reliable to use.
