Dual Liquid Full Hydraulic Cement Grouting Pump With Competitive Price

Main Features 1.The pump can not only be used for grouting one kind of fluid but also grouting two kind of fluid.And it can be used as a clean water pump, sewage pump and mud pump 2.The pump adopts hydraulic transmission, so it has small volume, light weight, stable performance, reliable operation and simple operation. 3.The pressure is adjusted arbitrarily in the design range. When the pressure exceeds the set value, the overflow valve opens the system to release the pressure, thus providing protection.

InquiryChat Now

  • Product Details
Product Description

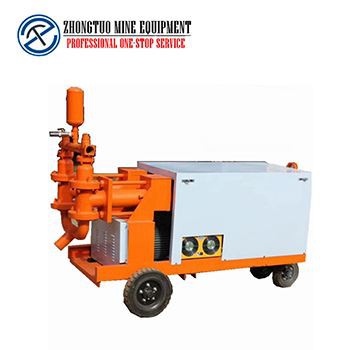

Dual liquid full hydraulic cement grouting pump

Product Application and Features

Hydraulic Grouting Pump is widely used for excavating and maintaining tunnel, foundation construction for road, bridge, dam, mine construction, high-rise building and all kinds of grouting construction. The technology is advanced, changing separated type into couplet type, then changing couplet type into integrated type, making concentricity improved to 99%. It’s a reliable and easy-to-operate grouting equipment with stable performance and reliable working efficiency.



Specification
Name
Dual liquid full hydraulic cement grouting pump
Item
Parameter
Theoretical Output
4m³/h
Maximum System Pressure
7Mpa
Conveying Pressure
7Mpa
Total Weight
600kg
Overall Dimension
L1550*W1050*H1150mm
Maximum Conveying Distance
200/60m(Horizontal, Vertical)
Main Motor Power
11kw
Voltage Classes
380V
Inner Diameter of Infusion Tube
Φ32mm
Inner Diameter of Absorption Tube
Φ51m
gydraulic grout pump #4



英文版证书_副本2

hydraulic grout pump #3

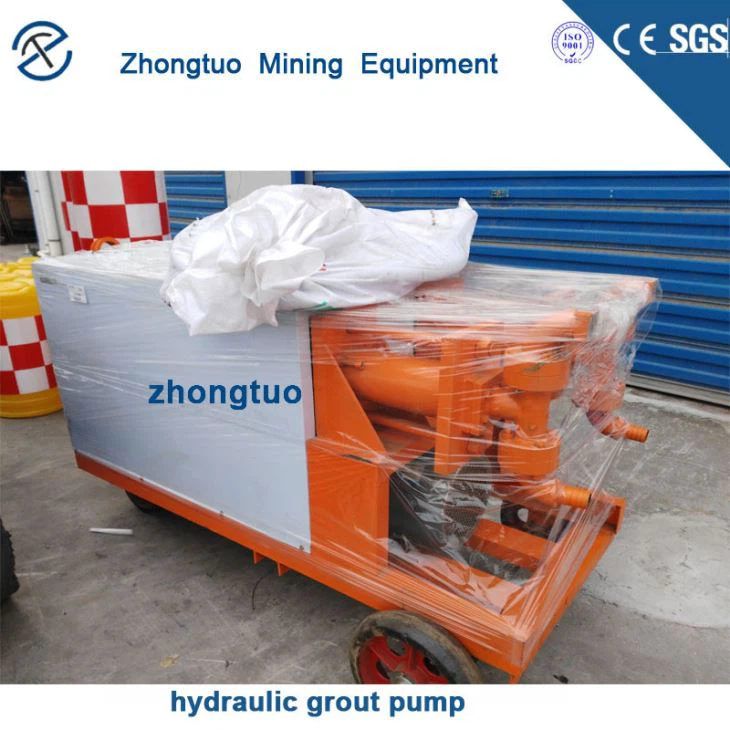

hydraulic grout pump

hydraulic grout pumpHydraulic double hydraulic grouting pump

产品售后流程2

英文版公司简介_conew3 拷贝

付款方式及货运2

Packaging Details:

Packed with wooden box or nude packing

Quality control department :

The technician will test every set before delivery to ensure every machine work perfectly
After-sales service:
80 professional after-sales staff will serve you. If needed, overseas service center is available.
