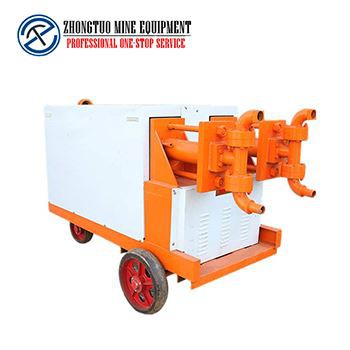

Double Hydraulic Grout Pump

1 hydraulic double liquid injection pump
2 stable performance, long distance, no pulse grouting.
3 The use of high pressure to easily solidify the material or mixture (water, cement, water glass, etc.) to the rock or soil cracks and cavities for accurate injection, in order to achieve the purpose of reducing seepage, consolidation rock and soil.
4 intentions to innovation, competition can develop

Inquiry

  • Product Details

Introduction of Double hydraulic grout pump

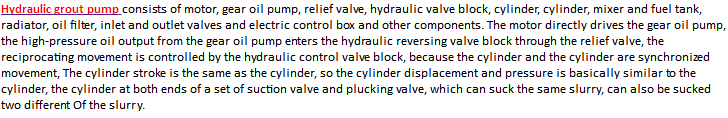

Hydraulic grout pump consists of motor, gear oil pump, relief valve, hydraulic valve block, cylinder, cylinder, mixer and fuel tank, radiator, oil filter, inlet and outlet valves and electric control box and other components. The motor directly drives the gear oil pump, the high-pressure oil output from the gear oil pump enters the hydraulic reversing valve block through the relief valve, the reciprocating movement is controlled by the hydraulic control valve block, because the cylinder and the cylinder are synchronized movement, The cylinder stroke is the same as the cylinder, so the cylinder displacement and pressure is basically similar to the cylinder, the cylinder at both ends of a set of suction valve and plucking valve, which can suck the same slurry, can also be sucked two different Of the slurry.


Dual liquid Cement Grouting pump.png


Parameters of  hydraulic grout pump

Maximum flow

70L

greatest pressure

0.5-8MPa

Motor Power

11kw

Water-cement ratio

O.75

Two-liquid ratio (agent: slurry)

11

weight

780kg

Dimensions

2060×1070×1420



You are buying = Our Products + Our Service :

1,Quality is our culture ,strict QC/QA systems under GMP factory.

2,Fast and safe delivery with secure and discreet shipment.

3,With us, your money is in safe as well as your business.It's our promise to you!

4,For whatever questions about us or our products you may have, do let us know and you can be assured we reply you in details with 24 hours and to your satisfaction.

5,Warmly welcome your visit in our company if available.
