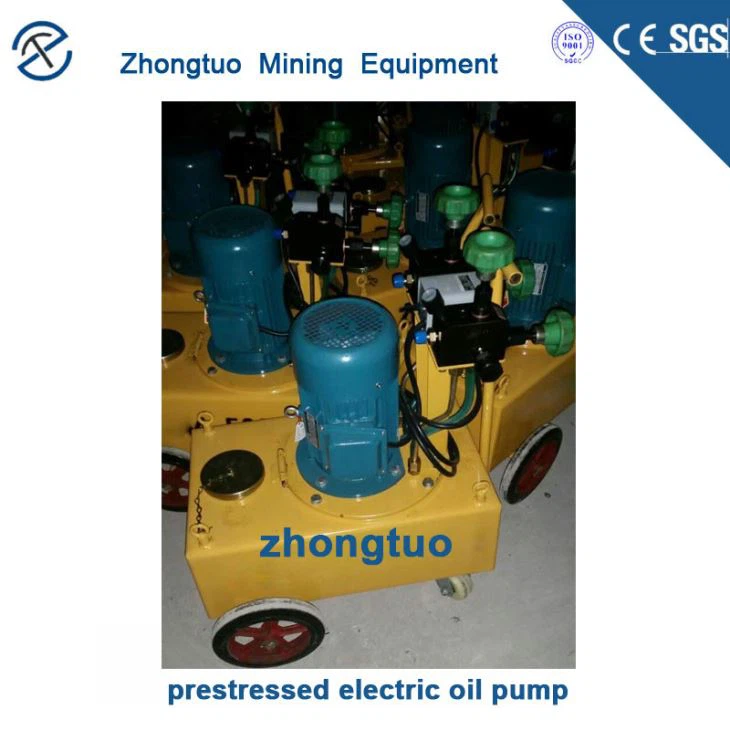

ZB Series Hydraulic Prestressed Oil Pump

truth $ honnor
1.Survival in the industrial jungle We offer typical products and typical prices. But another thing we can sure is no cheating, including what our product is?&how much it worth?
2.We always support you the best offer with sincerety.
3.Warrenty overseas, that’s not true and we never promise that but technical guide by video and all the spare parts.

InquiryChat Now

  • Product Details

quick details

Place of Origin:

Shannxi, China (Mainland)

Structure:

Piston Pump

Theory:

Rotary Pump, Axial Flow Pump

Weight:

53-270kg

Certificate:

ISO9001:2008

Material:

Standard material

Fuel:

electricity

Type:

Hydraulic

Key words:

hand oil pump

1

4Specifications of:







Type



Nom.

Pressure





MPa



Nom.

Flow





L/Min



Power







KW



Cylinder

capacity





L



Frequency







HZ



Weight







KG



Size







MM

ZB10-800H8010x107.5120502701090*590*1120
ZB6-600

60

6x65.5120502701090*590*1120
ZB4-600H504x444050120745*494*1052
ZB4-500502x234050130745*494*1052
ZB2-500502x21.5255066660*460*260


Stressing seal portable hydraulic electric oil jacking pump

 P1:Hydraulic System Chart



The device is a self-priming axial plunger pump. When motor drives axis9, leaned tray will push the plunger into plunger sleeve and return spring raises the plunger. The plunger repeats the operation to meet the function of in-taking and out-putting oil.

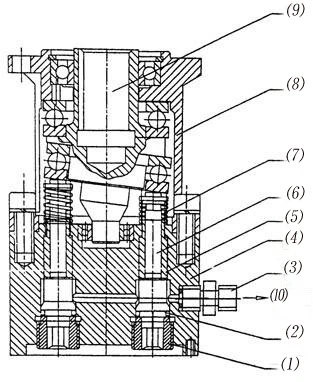

P2:Pump Structure

Stressing seal portable hydraulic electric oil jacking pump
1Screw Plug
2Distributing
3Nozzle
4Lower Part
5Plunger Sleeve
6Plunger
7Return Spring
8Upper Part
9Axis
10Out-Put Port

The left and right valve bodies which are the same structure constitute the pump. Each valve body consists of the throttle valve, unload valve, one-way valve, pressure meter, relief valve, intake nozzle,not put nozzle and oil-return nozzle. (P3)

The throttle valve is a tunable wedge valve used to adjust the input flow of the cylinder. The unload valve is a kind of tunable globe valve(open—unload, closeintake oil).

The one-way valve of ball type stabilizes the pressure of wording system. The relief valve is a tunable overflow valve used to adjust the system pressure of 50MPa.

Stressing seal portable hydraulic electric oil jacking pump

P3: Control Valve Structure



1Unload Valve Socket Assembly
2Throttle Valve Socket Assembly
3One-Way Valve Assembly
4Steel Ball
5Connector Of Pressure Meter
6Output Nozle
7Control Valve Body 1
8Intake Nozzle
9Control Valve Body 2
10Relief Valve Assembly
11

Oil-Return Nozzle

Application:

 Stressing seal portable hydraulic electric oil jacking pump

Packaging & Shippin One set in one  wooden box. any port in China

payment:TT or L/C at sight
