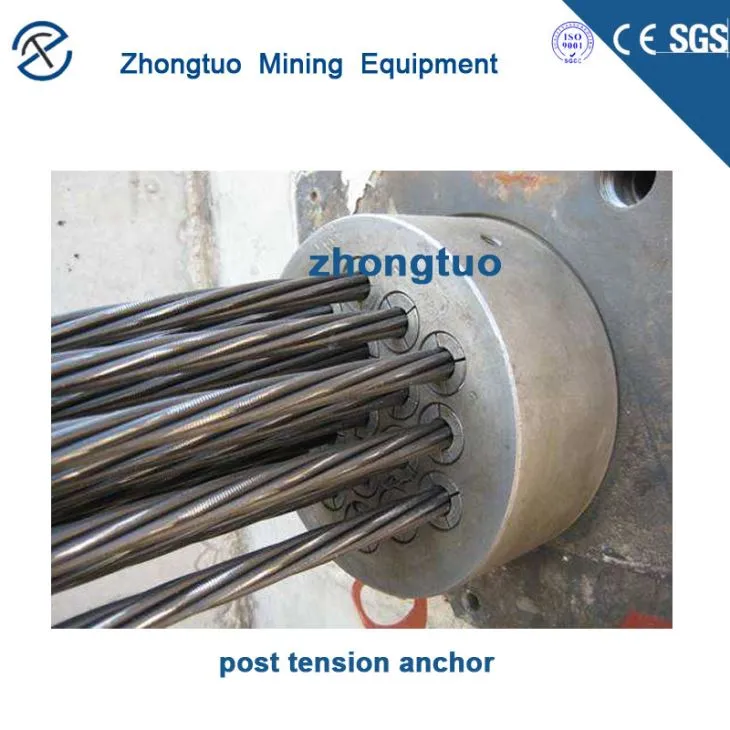

Stressing Flat Anchorage With Multi Holes

Features of Prestressed Multi hole Flat Anchorage
1. Slab anchorage can be used to anchor PC strand which strength below 2000Mpa.
2. Slab anchorage has excellent static load anchoring performance. Anchoring efficiency factor is ηA≥0.95 and elongation εa≥2% , and meet International strandard FIP 1993
3. concrete slab has excellent fatigue resistance. It pass 200 million fatigue resistance test which stress amplitude is 120MPa, and the upper limit of stress is 0.65fpk.
4. Slab anchorage has good self-anchor performance
5. The draw-in of anchor is ≤6mm.
6. The friction loss of anchor is ≤2.5%
7. We have kinds of anchorage and appropriate stressing equipments.

InquiryChat Now

  • Product Details

Description of stressing flat anchorage

  • Compact anchorages to facilitate the installation and grouting of the tendons.

  • Anchorages design to satisfy the Design requirements of Int’l Standards

  • Wide selection of anchorages & jacks from 1 up to 37 strands (round) & 2 up to 5 strands (flat) allowing the Consultants to provide an economical design and specify improved technical feasibilities (proper cable deviations & losses).

  • 37 different anchorage sizes and different types contributing to the Economy of the Design & Construction.

  • Easy connection with standard or enlarged steel or plastic sheaths (flat and round).





1.  stressing flat anchorage can be used to anchor PC strand which strength below 2000Mpa.
2.  stressing flat anchorage has excellent static load anchoring performance. Anchoring efficiency factor is ηA≥0.95 and elongation εa≥2% , and meet International strandard FIP 1993<Post tensioned prestressing system acceptance advice>
3.  stressing flat anchorage has excellent fatigue resistance. It pass 200 million fatigue resistance test which stress amplitude is 120MPa, and the upper limit of stress is 0.65fpk.
4.  stressing flat anchorage has good self-anchor performance
5. The draw-in of anchor is ≤6mm.
6. The friction loss of anchor is ≤2.5%
7. We have kinds of anchorage and appropriate stressing equipments.


M4 applies to 4.00mm spiral ribbed pc wire.
M5 applies to 4.80mm & 5.0mm spiral ribbed pc wire.
M6 applies to 6.0mm & 6.25mm spiral ribbed pc wire.
M7 applies to 7.0mm & 7.5mm spiral ribbed pc wire.
M8 applies to 8.00mm spiral ribbed pc wire.
M9 applies to 9.00mm spiral ribbed pc wire.
M10 applies to 9.3mm, 9.50mm pc strand;
M11 applies to 10.8mm & 11.10mm pc strand
M13 applies to 12.7mm, 12.5mm & 12.9mm pc strand
M15 applies to 15.2 or 15.24mm, 15.7mm
M18 applies to 17.8mm pc strand
M19 applies to 18.9mm pc strand
M22 applies to 21.6/21.8mm pc strand

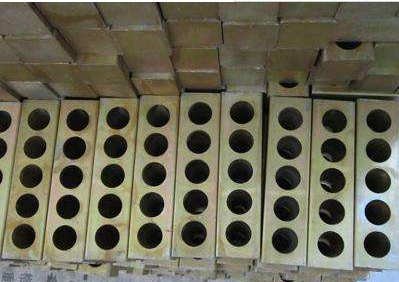

Slab Anchor parameter table



BM15/13-2BM15/13-3BM15/13-4BM15/13-5

Anchorage
D80113146180
E48484848
H48484848

Anchor seat plate
A140180205245
B70707070
C130110150170

Pipe
a50607490
b22222222

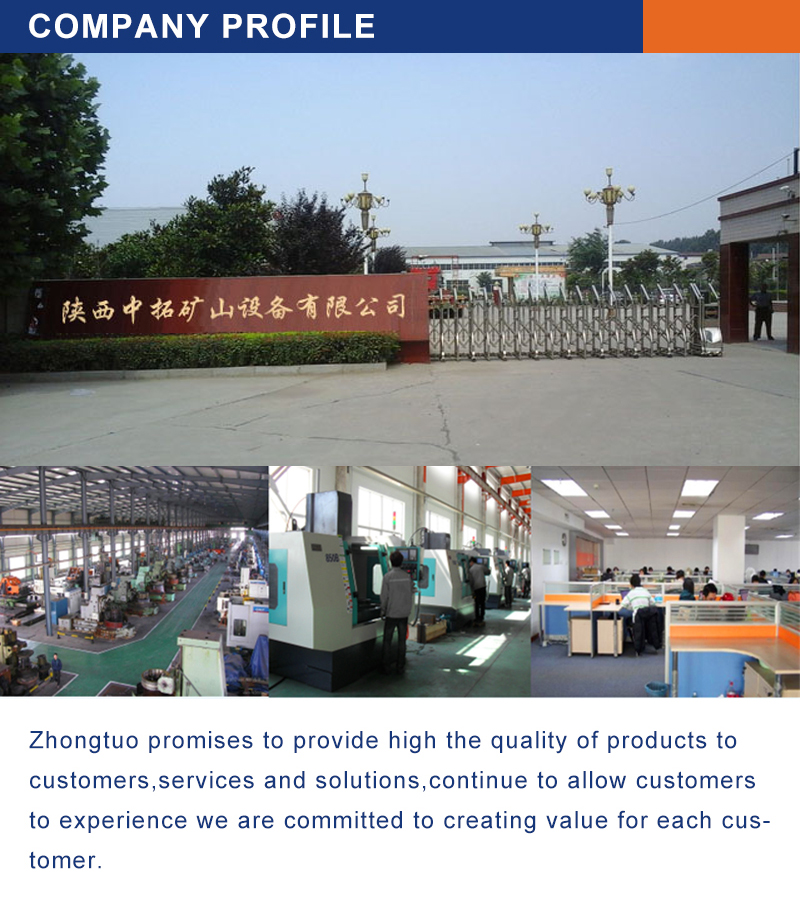

factory of stressing flat anchorage

You are buying = Our Products + Our Service :

1,Quality is our culture ,strict QC/QA systems under GMP factory.

2,Fast and safe delivery with secure and discreet shipment.

3,With us, your money is in safe as well as your business.It's our promise to you!

4,For whatever questions about us or our products you may have, do let us know and you can be assured we reply you in details with 24 hours and to your satisfaction.

5,Warmly welcome your visit in our company if available.

stressing flat anchorage
