Prestressed Equipment Fixed-End Anchor Extruder Machine With Competitive Price

Overview Product Description Extruder The extruder is suitable for the production of anchoring heads in prestressed tendons, and is a special tool for squeeze anchors. Technical performance Detailed Images ZT type extruder structure diagram: 1,Rear end cover 2, rear plug 3, sealing member 4,...

InquiryChat Now

  • Product Details
Overview


Product Description

Extruder

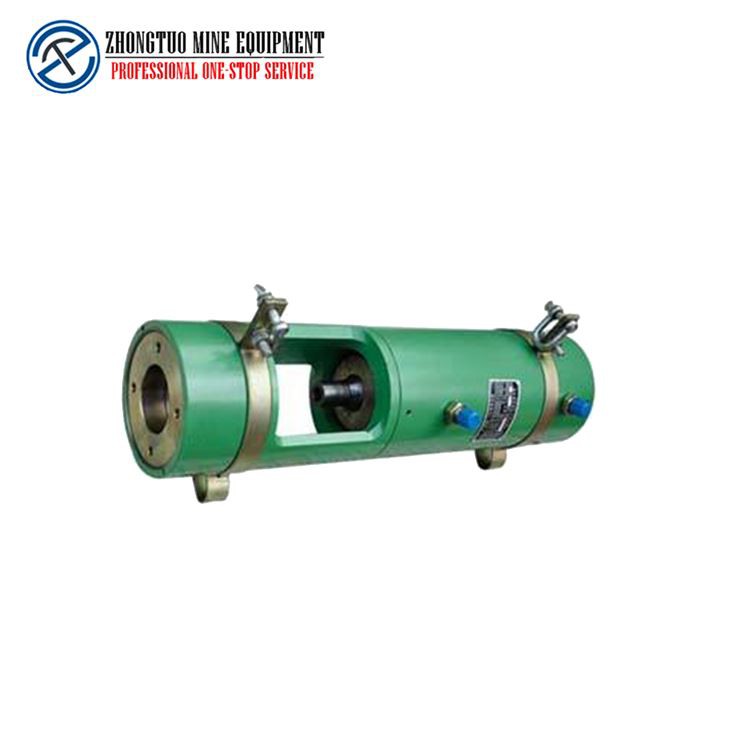

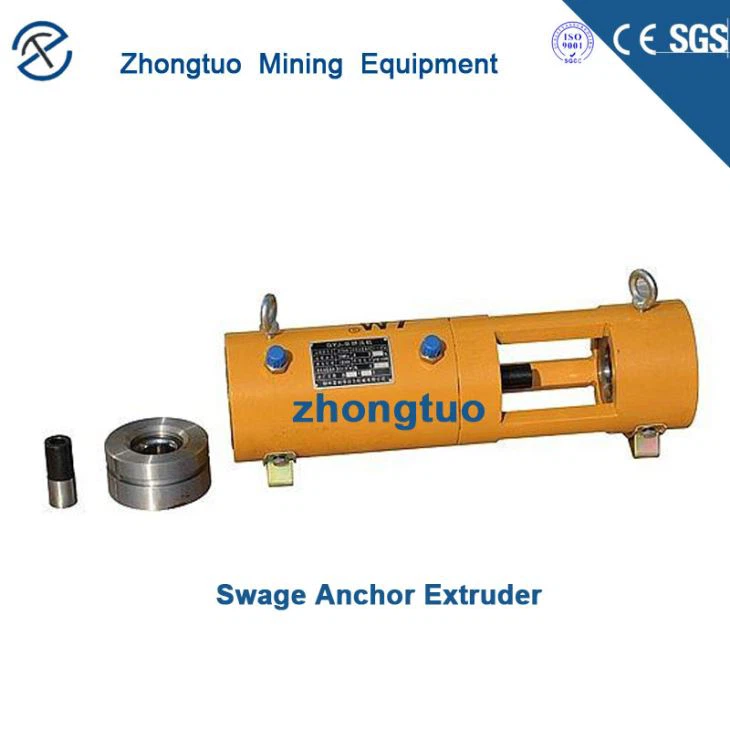

The extruder is suitable for the production of anchoring heads in prestressed tendons, and is a special tool for squeeze anchors.

Technical performance

                                          ZT extruder technical performance parameter  table
rated pressure 45MPAreturn piston area4.948×10―³㎡
extrusion piston area1.31×10ˉ²  weight48kg
nominal pressing force
 509KNepuipped with oil pumpZB4-500
extrusion stroke 150mm  dimension150×565(mm)
Detailed Images

ZT type extruder structure diagram:

1,Rear end cover    2, rear plug      3, sealing member     4, cylinder guide belt      5, oil cylinder      6, piston      7, through sleeve     8, extrusion head holder    9, extrusion head     10, extrusion core     11, Extrusion die holder       12, lifting ring      13, connecting body    14, pressing ring

working principle

ZT type extruder is mainly composed of jacks, extrusion heads, extrusion dies and other components. The squeeze anchor consists of an extrusion sleeve, a compression spring and a steel strand. During operation, after supplying high-pressure oil to the cylinder, the piston drives the extrusion head to push the extrusion sleeve, the extrusion spring and the steel strand together into the extrusion die cone hole, since the diameter of the small end of the die hole is smaller than the outer diameter of the extrusion sleeve, The extrusion sleeve is firmly compressed on the steel strand, the inner edge of the compression spring is stuck to the steel strand, and the outer edge is embedded in the extrusion sleeve to form a squeeze anchor with very reliable anchoring performance.

oil cylinder

piston


extrusion head holder and extrusion head


pressing ring


Rear end cover


extrusion sleeve and extrusion spring
