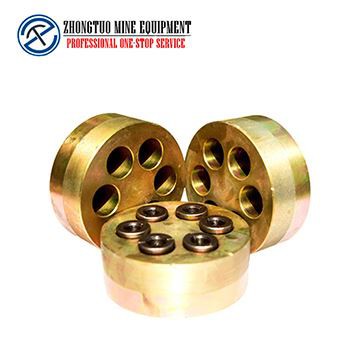

Multi-Holes Anchorage|post Tension Anchor

Description of post tension anchor : Prestressing forces of the post tension anchor are transferred to the concrete structures through Anchorages. Anchorage for the Post Tensioning system normally comprises of a steel plates with a number of conical holes, the conical Grips and the Guide...

Inquiry

  • Product Details

Description of post tension anchor:

Prestressing forces of the post tension anchor are transferred to the concrete structures through Anchorages. Anchorage for the Post Tensioning system normally comprises of a steel plates with a number of conical holes, the conical Grips and the Guide (Trumpet). Trumpet or Guide is used to connect the ducts and provides a flat surface for locating the Bearing Plate on it. As shown in the figure below:


post tension anchor-3ui.png


post tension anchor-0ui.jpg   post tension anchor-1ui.jpg


Hot Tags: multi-holes anchorage|post tension anchor, manufacturers, suppliers, factory, wholesale, buy, cheap, low price
