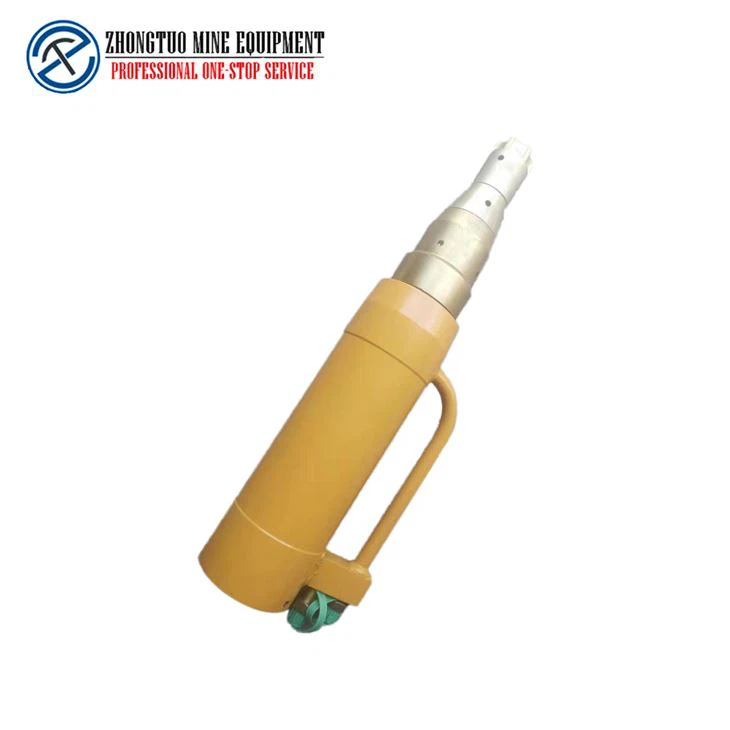

Monostrand Hydraulic Jack|Centre-hole Post Tension Stressing

1 front card jack made of high strength steel, can be customized 20-30 tons of tension.
2 has a compact structure, light weight, small size.
Smile hanging in the face service in mind

InquiryChat Now

  • Product Details

Monostrand Hydraulic Jack|Centre-hole Post Tension Stressing

FEATURES of Monostrand Hydraulic Jack:

It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.


A:  It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.

B:  It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.

C: The customized jack  can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.

TECHNICAL DATA of Monostrand Hydraulic Jack:

ModelNominal Tension Force(KN)Central Hole Diameter(mm)Tensioning Area(mm²)Stroke(mm)Rated oil pressure(Mpa)PC Strand Reserved Length(mm)
QYC707410143715050120
YDC24024018477120060200
QYC27027018441520061200
QYC11001100
2261920049
QYC20002000
4233220048

APPLICATIONS of Monostrand Hydraulic Jack:

1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.

2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.

3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
