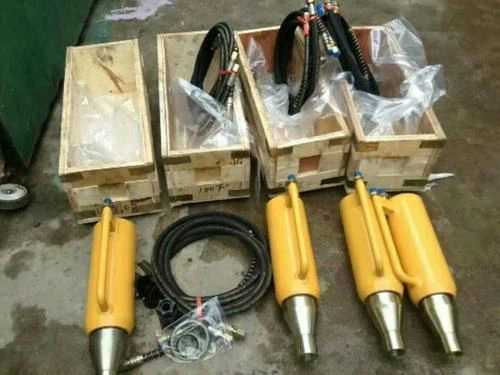

China Mono Stressing Jack For PC Strand Manufacturers

1 front card jack made of high strength steel, can be customized 20-30 tons of tension. 2 has a compact structure, light weight, small size.

Inquiry

  • Product Details

China Mono Stressing Jack for PC Strand Manufacturers

Description of Mono Strand Pulling Jack:

1. Model: QYC270(27 tons), QYC240(24 tons).
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area:  4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.
5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.


Features of Monostrand Hydraulic Jack:

It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.
A:  It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B:  It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.
C: The customized jack  can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
6. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
7. Warranty Time: One Year, we will send you Repair Kits if you need any time.

mono strand jack (2).jpgTechnical data of stressing jacks :

Model

Nominal Tension Force(KN)

Central Hole Diameter(mm)

Tensioning Area(mm²)

Stroke(mm)

Rated oil pressure(Mpa)

PC Strand Reserved Length(mm)

QYC70

74

10

1437

150

50

120

YDC240

240

18

4771

200

60

200

QYC270

270

18

4415

200

61

200

QYC1100

1100


22619

200

49


QYC2000

2000


42332

200

48




Applications mono stressing jack:
1). For Buildings: Housing, Commercial Buildings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
